3M™ Medical Foam Tape, 1772

"We've detected that you're visiting from {0}. Would you like to switch languages for tailored content?"

Hover over image to zoom

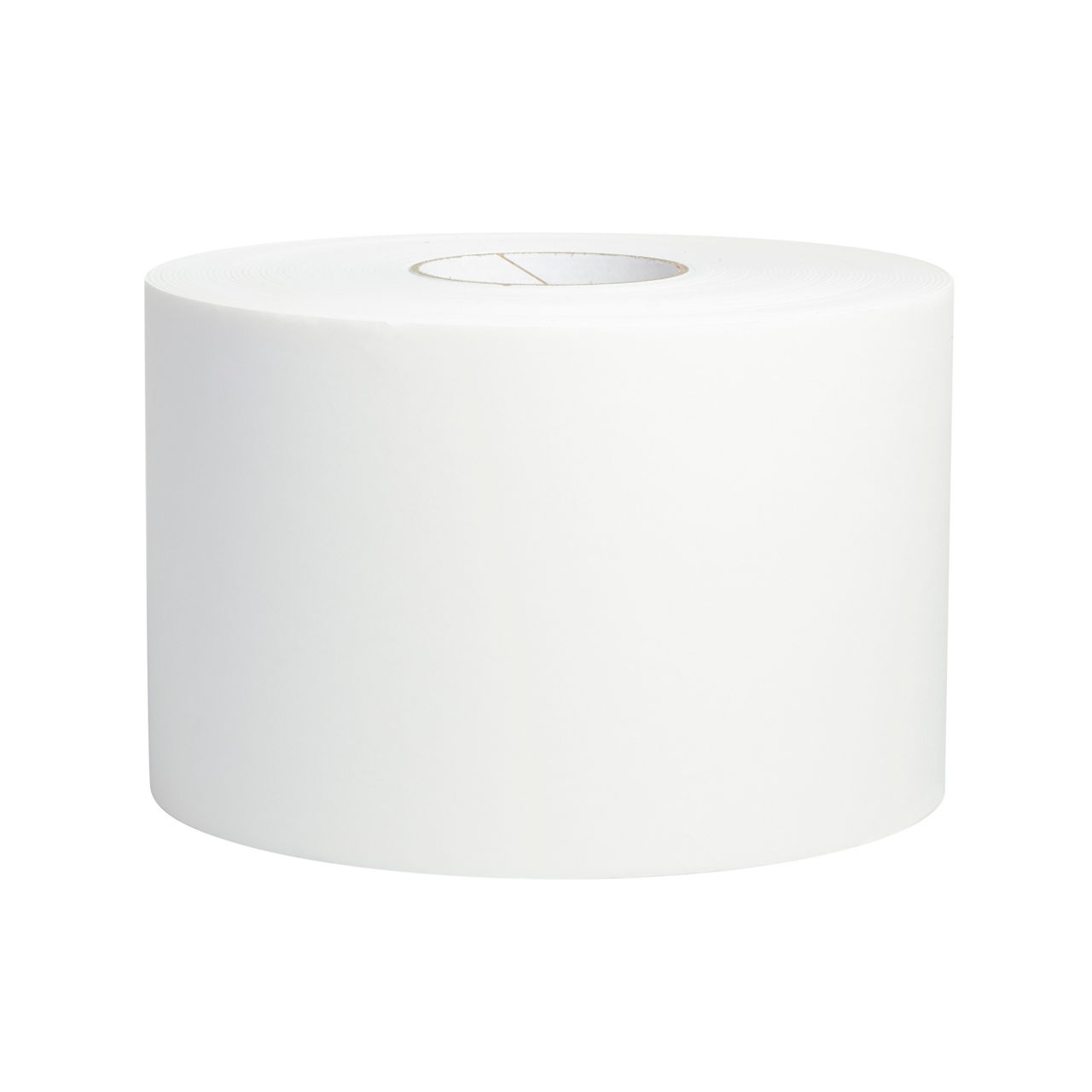

3M™ White Polyethylene Single Sided Medical Foam Tape, 1772

About the product

This single sided medical foam tape on a roll (1772) consists closed cell, white polyethylene foam, coated with a pressure sensitive tackified acrylic adhesive. The liner is a silicone treated, polyethylene coated, bleached Kraft paper, one side only. The tape is wound with the liner on the outside of roll. May be used for health care medical devices.

Product options

1-5 of Products

Select Filters to narrow your product list

Overall Width (Imperial)

Overall Width (Metric)

Overall Length (Imperial)

Overall Length (Metric)

Core Material

Product name	Product ID	Catalog number	Overall Width (Imperial)	Overall Width (Metric)	Overall Length (Imperial)	Overall Length (Metric)	Material	Core Material	Overall Thickness (Imperial)	Liner Weight (Metric)	Core Diameter (Metric)	Overall Thickness (Metric)	Adhesive Type	Category name	Backing Material	Tape Color	Conformability	PrintableBacking	BackingCaliperMetric
3M™ Medical Foam Tape 1772, Single Sided White Polyethylene, 83# Liner, Configurable	Product ID 7100012802	Catalog number 1772	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) -	Overall Length (Metric) -	Material Polyolefin Foam	Core Material -	Overall Thickness (Imperial) 66.929 mil	Liner Weight (Metric) 135 g/m²	Core Diameter (Metric) -	Overall Thickness (Metric) 1.7 mm	Adhesive Type Acrylic/Acrylate (Tack)	Category name Medical Component Foam Tapes	Backing Material Polyolefin Foam	Tape Color White	Conformability Low	PrintableBacking true	BackingCaliperMetric 1600 μm
3M™ Medical Foam Tape 1772, Single Sided White Polyethylene, 83# Liner, 5.3281 IN X 72 YD, 3 IN Plastic, CUSTOMIZED	Product ID 7010510790	Catalog number 1772	Overall Width (Imperial) 5.33 in	Overall Width (Metric) 13.533 cm	Overall Length (Imperial) 2592.01 in	Overall Length (Metric) 65.837 m	Material Polyolefin Foam	Core Material Plastic	Overall Thickness (Imperial) -	Liner Weight (Metric) -	Core Diameter (Metric) 7.62 cm	Overall Thickness (Metric) -	Adhesive Type -	Category name Medical Component Foam Tapes	Backing Material -	Tape Color -	Conformability -	PrintableBacking -	BackingCaliperMetric -
3M™ Medical Foam Tape 1772, Single Sided White Polyethylene, 83# Liner, 2.625 IN X 80 YD, 3 IN Fiber	Product ID 7010510788	Catalog number 1772	Overall Width (Imperial) 2.63 in	Overall Width (Metric) 6.668 cm	Overall Length (Imperial) 2880 in	Overall Length (Metric) 73.152 m	Material Polyolefin Foam	Core Material Cardboard	Overall Thickness (Imperial) -	Liner Weight (Metric) -	Core Diameter (Metric) 7.62 cm	Overall Thickness (Metric) -	Adhesive Type -	Category name Medical Component Foam Tapes	Backing Material -	Tape Color -	Conformability -	PrintableBacking -	BackingCaliperMetric -
3M™ Medical Foam Tape 1772, Single Sided White Polyethylene, 83# Liner, 12 IN X 72 YD, 3 IN Fiber	Product ID 7010510787	Catalog number 1772	Overall Width (Imperial) 12 in	Overall Width (Metric) 30.48 cm	Overall Length (Imperial) 2592.01 in	Overall Length (Metric) 65.837 m	Material Polyolefin Foam	Core Material Cardboard	Overall Thickness (Imperial) -	Liner Weight (Metric) -	Core Diameter (Metric) 7.62 cm	Overall Thickness (Metric) -	Adhesive Type -	Category name Medical Component Foam Tapes	Backing Material -	Tape Color -	Conformability -	PrintableBacking -	BackingCaliperMetric -
3M™ Medical Foam Tape 1772, Single Sided White Polyethylene, 83# Liner, 4.36 IN X 144 YD, 3 IN Plastic, CUSTOMIZED	Product ID 7010510521	Catalog number 1772	Overall Width (Imperial) 4.36 in	Overall Width (Metric) 11.074 cm	Overall Length (Imperial) 5184.02 in	Overall Length (Metric) 131.674 m	Material Polyolefin Foam	Core Material Plastic	Overall Thickness (Imperial) -	Liner Weight (Metric) -	Core Diameter (Metric) 7.62 cm	Overall Thickness (Metric) -	Adhesive Type -	Category name Medical Component Foam Tapes	Backing Material -	Tape Color -	Conformability -	PrintableBacking -	BackingCaliperMetric -
3M™ Medical Foam Tape 1772, Single Sided White Polyethylene, 83# Liner, 2.937 IN X 90 YD, 3 IN Plastic, CUSTOMIZED	Product ID 7010510520	Catalog number 1772	Overall Width (Imperial) 2.94 in	Overall Width (Metric) 7.46 cm	Overall Length (Imperial) 3240 in	Overall Length (Metric) 82.296 m	Material Polyolefin Foam	Core Material Plastic	Overall Thickness (Imperial) -	Liner Weight (Metric) -	Core Diameter (Metric) 7.62 cm	Overall Thickness (Metric) -	Adhesive Type -	Category name Medical Component Foam Tapes	Backing Material -	Tape Color -	Conformability -	PrintableBacking -	BackingCaliperMetric -

Product details

Tackified Acrylic Adhesive
Good Processability
Fluid Resistant
Adheres to High Surface Energy Substrates

Product specifications

Liner Weight (Metric)	Liner Weight (Metric) 135 g/m²
Backing Caliper (Metric)	Backing Caliper (Metric) 1600 μm
OverallLengthImperial	OverallLengthImperial 3240 in
Core Diameter (Metric)	Core Diameter (Metric) 7.62 cm
Catalog number	Catalog number 1772
Overall Thickness (Imperial)	Overall Thickness (Imperial) 66.929 mil
Material	Material Polyolefin Foam
OverallWidthMetric	OverallWidthMetric 11.074 cm
Overall Thickness (Metric)	Overall Thickness (Metric) 1.7 mm
Legacy SKU	Legacy SKU CY998759583, CY998759591, 70000028368, CY998759617, CY998756811
categoryName	categoryName Medical Component Foam Tapes
Overall Length (Imperial)	Overall Length (Imperial) 2592.01 in, 2880 in, 5184.02 in
Overall Width (Metric)	Overall Width (Metric) 30.48 cm, 6.668 cm, 13.533 cm, 7.46 cm
Overall Length (Metric)	Overall Length (Metric) 65.837 m, 73.152 m, 131.674 m, 82.296 m
OverallWidthImperial	OverallWidthImperial 12 in
Core Material	Core Material Cardboard, Plastic
Conformability	Conformability Low
Category name	Category name Medical Component Foam Tapes
BackingMaterial	BackingMaterial Polyolefin Foam
Printable Backing	Printable Backing true
Overall Width (Imperial)	Overall Width (Imperial) 2.63 in, 4.36 in, 5.33 in, 2.94 in
Adhesive Type	Adhesive Type Acrylic/Acrylate (Tack)
LEGACY_SKU_NO	LEGACY_SKU_NO CY998756829
TapeColor	TapeColor White
