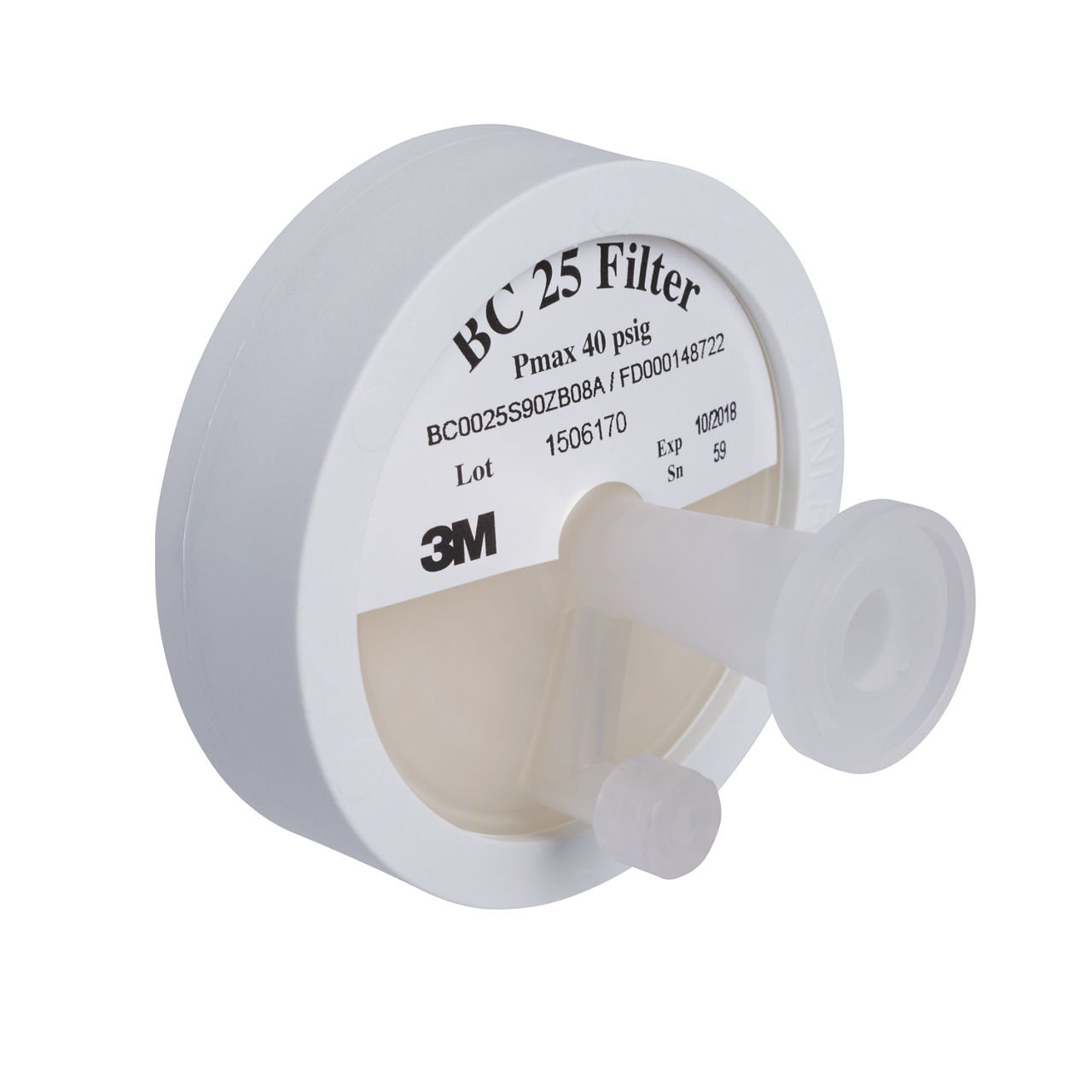

3M™ Zeta Plus™ BC Series Filter Capsule with Activated Carbon Series Media
Hover over image to zoom
About the product
Zeta Plus™ BC Series Filter Capsule with Activated Carbon Series Media contains activated carbon to decolorize and remove contaminants from process streams. The media can be used in applications where bulk activated carbon is used. Activated carbon particles and cellulose fibers mechanically filter contaminants while a positively charged polymer resin may adsorb negatively charged particles.
Product options
1-5 of 14 Products
Select Filters to narrow your product list
| Product name and IDs | 3M ID | Overall Width (Imperial) | Overall Width (Metric) | Overall Diameter (Imperial) | Overall Diameter (Metric) | Flow Rate (Imperial) | Flow Rate (Metric) | Filter Type | Grade | Application | Industries | Product Series | Brand | Category Name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3M ID 7100116454 |
Overall Width (Imperial) 9.84 in |
Overall Width (Metric) 25 cm |
Overall Diameter (Imperial) 2.63 in |
Overall Diameter (Metric) 66.8 mm |
Flow Rate (Imperial) 25.003 gal/min |
Flow Rate (Metric) 94.635 l/min |
Filter Type Filter Capsule |
Grade R53SLP |
Application Harvest and clarification |
Industries Biopharmaceutical manufacturing |
Product Series BC |
Brand Zeta Plus™ |
Category Name Capsule Filters |
|
|
3M ID 7000076437 |
Overall Width (Imperial) - |
Overall Width (Metric) - |
Overall Diameter (Imperial) 2.63 in |
Overall Diameter (Metric) 66.8 mm |
Flow Rate (Imperial) 25.003 gal/min |
Flow Rate (Metric) 94.635 l/min |
Filter Type Filter Capsule |
Grade R33SP |
Application Harvest and clarification |
Industries Biopharmaceutical manufacturing |
Product Series BC |
Brand Zeta Plus™ |
Category Name Capsule Filters |
|
|
3M ID 7000076362 |
Overall Width (Imperial) - |
Overall Width (Metric) - |
Overall Diameter (Imperial) 2.63 in |
Overall Diameter (Metric) 66.8 mm |
Flow Rate (Imperial) 25.003 gal/min |
Flow Rate (Metric) 94.635 l/min |
Filter Type Filter Capsule |
Grade R35SP |
Application Harvest and clarification |
Industries Biopharmaceutical manufacturing |
Product Series BC |
Brand Zeta Plus™ |
Category Name Capsule Filters |
|
|
3M ID 7000076361 |
Overall Width (Imperial) - |
Overall Width (Metric) - |
Overall Diameter (Imperial) 2.63 in |
Overall Diameter (Metric) 66.8 mm |
Flow Rate (Imperial) 25.003 gal/min |
Flow Rate (Metric) 94.635 l/min |
Filter Type Filter Capsule |
Grade R54SP |
Application Harvest and clarification |
Industries Biopharmaceutical manufacturing |
Product Series BC |
Brand Zeta Plus™ |
Category Name Capsule Filters |
|
|
3M ID 7000076247 |
Overall Width (Imperial) - |
Overall Width (Metric) - |
Overall Diameter (Imperial) 2.63 in |
Overall Diameter (Metric) 66.8 mm |
Flow Rate (Imperial) 25.003 gal/min |
Flow Rate (Metric) 94.635 l/min |
Filter Type Filter Capsule |
Grade R52SP |
Application Harvest and clarification |
Industries Biopharmaceutical manufacturing |
Product Series BC |
Brand Zeta Plus™ |
Category Name Capsule Filters |
|
|
3M ID 7000076246 |
Overall Width (Imperial) - |
Overall Width (Metric) - |
Overall Diameter (Imperial) 2.63 in |
Overall Diameter (Metric) 66.8 mm |
Flow Rate (Imperial) 25.003 gal/min |
Flow Rate (Metric) 94.635 l/min |
Filter Type Filter Capsule |
Grade R51SP |
Application Harvest and clarification |
Industries Biopharmaceutical manufacturing |
Product Series BC |
Brand Zeta Plus™ |
Category Name Capsule Filters |
|
|
3M ID 7000076234 |
Overall Width (Imperial) - |
Overall Width (Metric) - |
Overall Diameter (Imperial) 2.63 in |
Overall Diameter (Metric) 66.8 mm |
Flow Rate (Imperial) 25.003 gal/min |
Flow Rate (Metric) 94.635 l/min |
Filter Type Filter Capsule |
Grade R35SP |
Application Harvest and clarification |
Industries Biopharmaceutical manufacturing |
Product Series BC |
Brand Zeta Plus™ |
Category Name Capsule Filters |
|
|
3M ID 7000076233 |
Overall Width (Imperial) - |
Overall Width (Metric) - |
Overall Diameter (Imperial) 2.63 in |
Overall Diameter (Metric) 66.8 mm |
Flow Rate (Imperial) 25.003 gal/min |
Flow Rate (Metric) 94.635 l/min |
Filter Type Filter Capsule |
Grade R53SP |
Application Harvest and clarification |
Industries Biopharmaceutical manufacturing |
Product Series BC |
Brand Zeta Plus™ |
Category Name Capsule Filters |
|
|
3M ID 7000076232 |
Overall Width (Imperial) - |
Overall Width (Metric) - |
Overall Diameter (Imperial) 2.63 in |
Overall Diameter (Metric) 66.8 mm |
Flow Rate (Imperial) 25.003 gal/min |
Flow Rate (Metric) 94.635 l/min |
Filter Type Filter Capsule |
Grade R33SP |
Application Harvest and clarification |
Industries Biopharmaceutical manufacturing |
Product Series BC |
Brand Zeta Plus™ |
Category Name Capsule Filters |
|
|
3M ID 7000076195 |
Overall Width (Imperial) - |
Overall Width (Metric) - |
Overall Diameter (Imperial) 2.63 in |
Overall Diameter (Metric) 66.8 mm |
Flow Rate (Imperial) 25.003 gal/min |
Flow Rate (Metric) 94.635 l/min |
Filter Type Filter Capsule |
Grade R54SP |
Application Harvest and clarification |
Industries Biopharmaceutical manufacturing |
Product Series BC |
Brand Zeta Plus™ |
Category Name Capsule Filters |
|
|
3M ID 7000076176 |
Overall Width (Imperial) - |
Overall Width (Metric) - |
Overall Diameter (Imperial) 2.63 in |
Overall Diameter (Metric) 66.8 mm |
Flow Rate (Imperial) 25.003 gal/min |
Flow Rate (Metric) 94.635 l/min |
Filter Type Filter Capsule |
Grade R55SP |
Application Harvest and clarification |
Industries Biopharmaceutical manufacturing |
Product Series BC |
Brand Zeta Plus™ |
Category Name Capsule Filters |
|
|
3M ID 7000076122 |
Overall Width (Imperial) - |
Overall Width (Metric) - |
Overall Diameter (Imperial) 2.63 in |
Overall Diameter (Metric) 66.8 mm |
Flow Rate (Imperial) 25.003 gal/min |
Flow Rate (Metric) 94.635 l/min |
Filter Type Filter Capsule |
Grade R55SP |
Application Harvest and clarification |
Industries Biopharmaceutical manufacturing |
Product Series BC |
Brand Zeta Plus™ |
Category Name Capsule Filters |
|
|
3M ID 7000076049 |
Overall Width (Imperial) - |
Overall Width (Metric) - |
Overall Diameter (Imperial) 2.63 in |
Overall Diameter (Metric) 66.8 mm |
Flow Rate (Imperial) 25.003 gal/min |
Flow Rate (Metric) 94.635 l/min |
Filter Type Filter Capsule |
Grade R52SP |
Application Harvest and clarification |
Industries Biopharmaceutical manufacturing |
Product Series BC |
Brand Zeta Plus™ |
Category Name Capsule Filters |
|
|
3M ID 7000075994 |
Overall Width (Imperial) - |
Overall Width (Metric) - |
Overall Diameter (Imperial) 2.63 in |
Overall Diameter (Metric) 66.8 mm |
Flow Rate (Imperial) 25.003 gal/min |
Flow Rate (Metric) 94.635 l/min |
Filter Type Filter Capsule |
Grade R32SP |
Application Harvest and clarification |
Industries Biopharmaceutical manufacturing |
Product Series BC |
Brand Zeta Plus™ |
Category Name Capsule Filters |
Product details
We offer five standard types of activated carbon to cover a broad range of applications. In many filtration applications, carbon is often the preferred option to absorb impurities and one of the most powerful absorbents available. Carbon is highly effective due to the vast surface area contained within a small footprint. One pound of carbon contains a surface area of approximately 100 to 125 acres and can absorb an extremely wide range of chemicals.
Our activated carbon media is also offered in three porosities to enable processing of solutions with different viscosities.
Scalability
Three capsule sizes are offered having surface areas of 25 cm2, 650 cm2 and 1300 cm2. The effective lenticular filter and vertical flow path design is preserved on these two larger Zeta Plus™ BC series filter capsules. The designs have proven effective for depth filtration systems and for consistent performance for all sizes.
- Totally enclosed, sanitary design filter capsule significantly reduces time required for cleaning
- In addition to activated carbon adsorption the filter media also may retain contaminants by mechanical entrapment and electrokinetic adsorption
- Single-use capsule reduces the hassle of cartridge change outs and eliminates housing cleaning validation
- All product components comply with United States Pharmacopeia (USP) <88> Class VI 70°C Biological Reactivity, in vivo
Product specifications
| Industries |
Industries
Biopharmaceutical manufacturing |
| Category Name |
Category Name
Capsule Filters |
| Grade |
Grade
R33SP, R54SP, R35SP, R55SP, R53SP, R51SP, R52SP, R32SP, R53SLP |
| Product Series |
Product Series
BC |
| Flow Rate (Metric) |
Flow Rate (Metric)
94.635 l/min |
| Flow Rate (Imperial) |
Flow Rate (Imperial)
25.003 gal/min |
| Brand |
Brand
Zeta Plus™ |
| Overall Diameter (Imperial) |
Overall Diameter (Imperial)
2.63 in |
| Overall Width (Metric) |
Overall Width (Metric)
25 cm |
| Overall Diameter (Metric) |
Overall Diameter (Metric)
66.8 mm |
| Filter Type |
Filter Type
Filter Capsule |
| Overall Width (Imperial) |
Overall Width (Imperial)
9.84 in |
| Application |
Application
Harvest and clarification |
