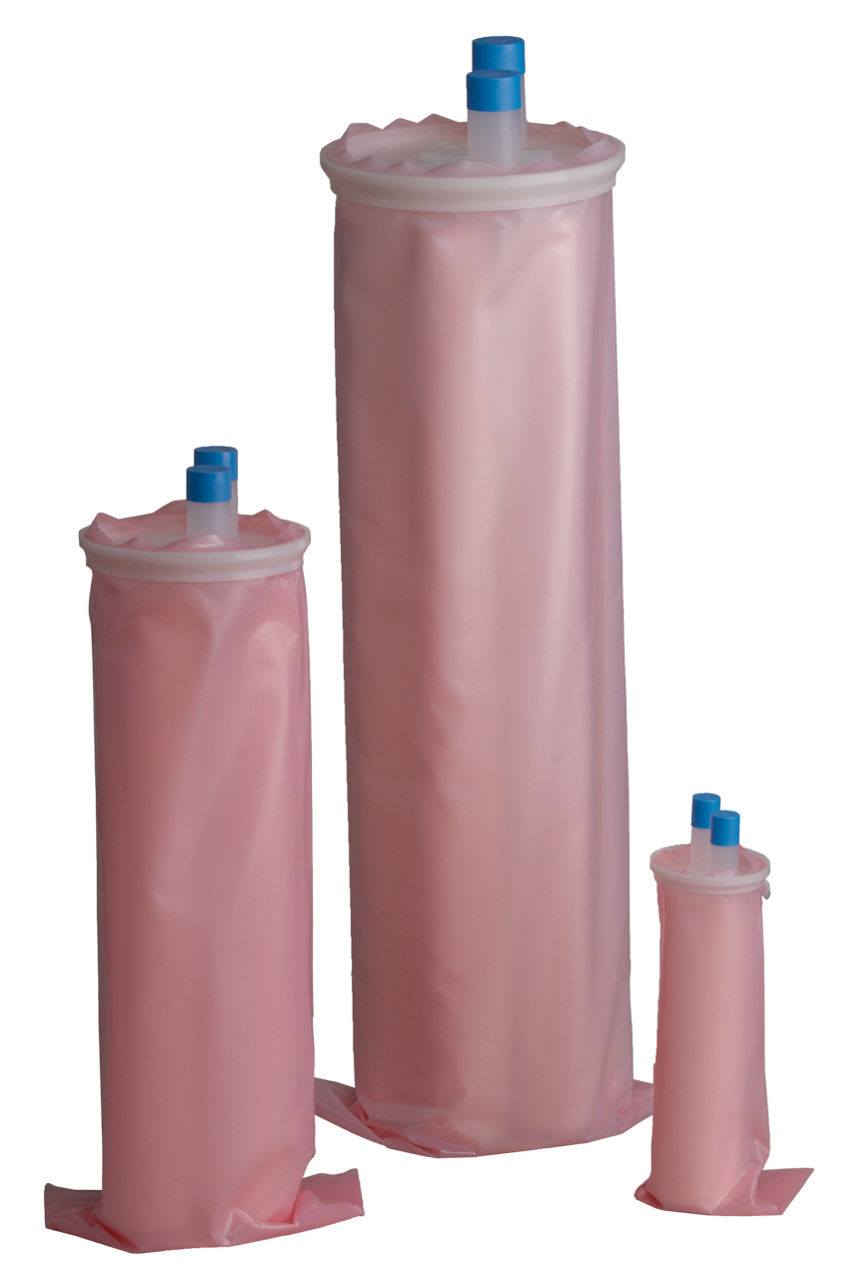

3M™ CTG-Klean System Filter Pack with Micro-Klean™ RT Series Cartridge
About the product
The 3M™ CTG-Klean System Filter Pack with Micro-Klean™ RT Series Cartridge is part of an enclosed system that uses a separate pressure vessel and disposable filter pack to isolate the product to be filtered from the housing. It reduces the amount of labor and operator exposure to impurities and cleaning solvents involved with filter change-outs and cleaning of conventional housings.
Product details
Advancing Depth Filtration
The filter's rigid construction provides consistent performance and extended service life.
Problem
Consistent filtration throughout the service life of a depth-style filter depends on how well the filter's structure tolerates fluctuations in operating conditions — including contaminant loading and differential pressure. Flexible structures, such as meltblown and string-wound filters, tend to compress and change porosity with increased pressure, while rigid structures do not. Media compression can result in short filter life because the pores collapse and ultimately close. Media compression can also cause the filter to release already held particles.
Solution
Our robust Micro-Klean™ RT Series Cartridge captures and retains contaminant within its rigid filter matrix, even under increasing differential pressure. In addition, the depth filter structure of the Micro-Klean™ RT Series Cartridge provides a significant increase in contaminant holding capacity and flow capacity at a given pressure. Unlike soft meltblown and string-wound filters that require core support, our Micro-Klean™ RT Series Cartridge is self-supporting and is grooved to provide greater than twice the surface area of ungrooved cartridges. The extended surface area prevents premature blinding of the outer surface by large particles and gels, and promotes fuller utilization of the depth-matrix. The result is significantly long filter life.
Result
The Micro-Klean™ RT Series Cartridge's extended service life results in fewer filter change-outs while its enhanced flow characteristics can typically reduce the number of filters required to achieve a given flow rate. These combined features can significantly reduce total filtration costs.
Go with Our Flow
Our cartridge pack design reduces the time and labor involved with filter change-outs and cleaning of conventional housings, thereby reducing operator exposure to product cleaning solvents. This streamlined system, coupled with high performance, long-life filters, make CUNO™ CTG-Klean System Filter Pack with Micro-Klean™ RT Series Cartridge the clear choice for user- friendly and cost-effective filtration.
- Grooves in filter cartridge extend surface area and promote long filter life
- Made without adhesives, binders, surfactants or lubricants, offering compatibility in a wide range of applications and operating conditions
- Filter pack design reduces time and labor involved with filter change-outs and cleaning of conventional housings
- Totally enclosed filter pack avoids handling of used filter cartridges
- Filter pack can be capped and reused to help lower filter cartridge costs, depending upon application
- 3M™ MicroKlean™ RT series are thermal-bonded polypropylene, rigid structure filter cartridge made without adhesives, binders, surfactants or lubricants
Product specifications
| Industries |
Industries
Chemical manufacturing,Machining & metal working,Manufacturing,Microelectronics |
| Filter Technology |
Filter Technology
Non-woven |
| Micron Rating |
Micron Rating
5 absolute 95, 10 micrometer, 25 micrometer, 50 micrometer |
| Product Series |
Product Series
RT |
| Grade |
Grade
25 micron |
| Brand |
Brand
CUNO™ |
| Overall Height (Imperial) |
Overall Height (Imperial)
1.18 inch |
| Overall Length (Imperial) |
Overall Length (Imperial)
10 inch, 30 inch |
| Overall Diameter (Imperial) |
Overall Diameter (Imperial)
3.5 inch, 10.25 inch, 2.59 inch |
| Overall Length (Metric) |
Overall Length (Metric)
25.4 centimeter, 76.2 centimeter |
| Overall Diameter (Metric) |
Overall Diameter (Metric)
8.9 centimeter, 26.04 centimeter, 6.59 centimeter |
| Filter Type |
Filter Type
Depth |
| Application |
Application
Electrolyte platings |
| Overall Height (Metric) |
Overall Height (Metric)
3 centimeter |
