ES Series Filter Housing

"We've detected that you're visiting from {0}. Would you like to switch languages for tailored content?"

Hover over image to zoom

About the product

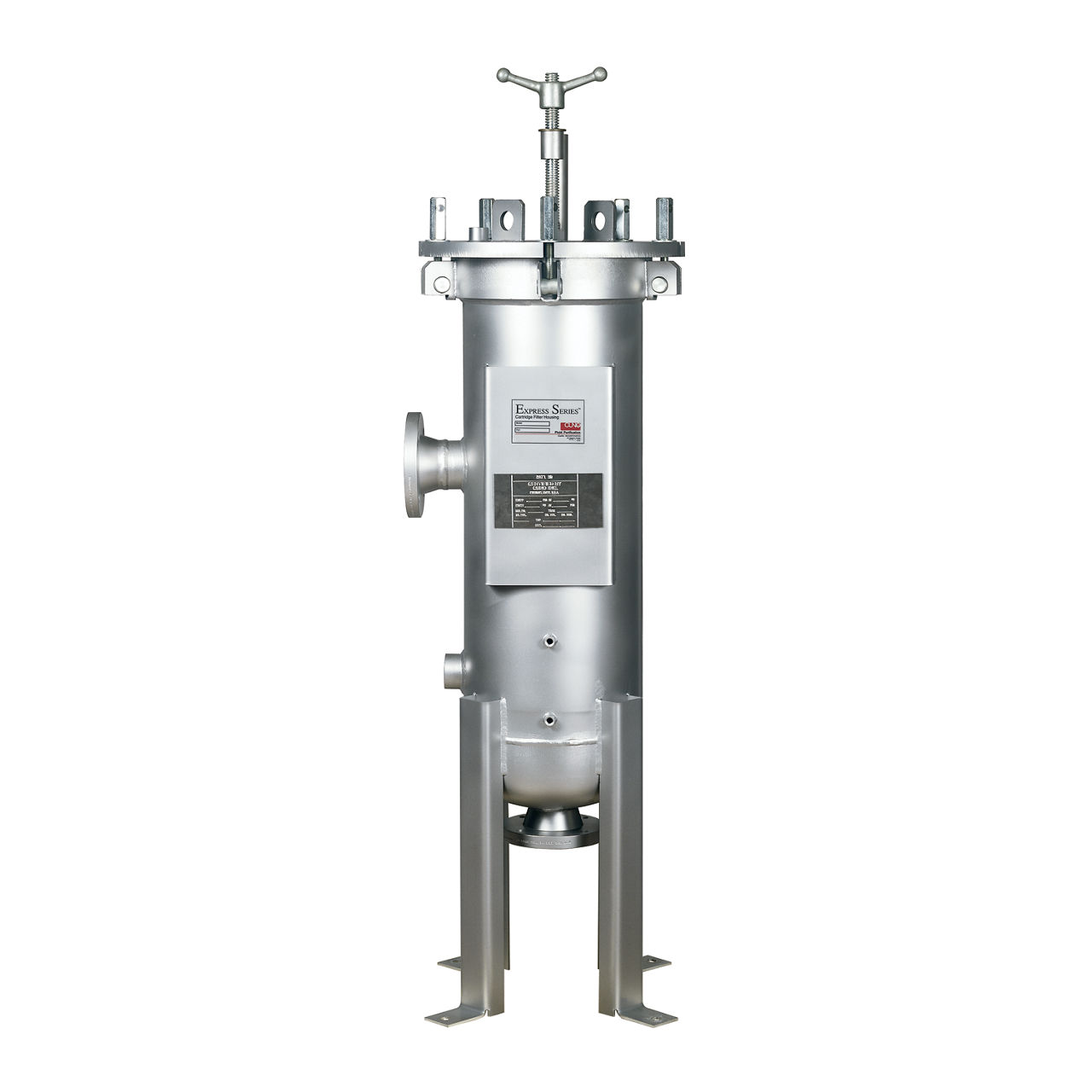

The 3M™ ES Series Housing offers a broad range of configurations available in a standard filter housing line. A selection of housing models, with outside diameters from 8 to 36 inches, contain from 3 to 120 DOE or SOE cartridges in 20" to 40" lengths, or up to 12 Zeta Plus™ series cartridges, based on the diaphragm selected.

Ask an expert

Product options

1-5 of Products

Select Filters to narrow your product list

Catalog number

OverallDiameterImperial

OverallDiameterMetric

Industries

ProductSeries

Product name	Product ID	Catalog number	OverallDiameterImperial	OverallDiameterMetric	Overall Height (Imperial)	Overall Height (Metric)	End Modification	Filter Type	Industries	ProductSeries	Brand	categoryName
3M™ ES Series Filter Housing ES12, 4837004, 12ES3BVAACDNS, Special, Mirror, 316SS, 3-High, 150 psi, 250 °F, ASME, 1/CS	Product ID 7100334744	Catalog number 4837004	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES12, 4837003, 12ES3BVAACDNS, Special, Mirror, 316SS, 3-High, 150 psi, 250 °F, ASME, 1/CS	Product ID 7100334743	Catalog number 4837003	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES16, 4840502, ES16024D3C1GAE3BBA2R1N1Y1, 316L SS DOE 3-High, Out@180, 150 psi ASME, 1/CS	Product ID 7100333276	Catalog number 4840502	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES12012D4A1GAE3BBA2R1N1Y1, 4840303, ES12, CS DOE, 3 Inch In/180 Out, 4-Hi, 150 psi ASME, 1/Case	Product ID 7100277669	Catalog number 4840303	OverallDiameterImperial 12 in	OverallDiameterMetric 304.8 mm	Overall Height (Imperial) 4 in	Overall Height (Metric) 101.6 mm	End Modification -	Filter Type Filter Housing	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES08004T3C1GAE3BBA0R1N1Y1, 4840208, ES08 316L SS, 222 3-Hi, 2" In/180 Out, 150 psi ASME, 1/Case	Product ID 7100275230	Catalog number 4840208	OverallDiameterImperial 8 in	OverallDiameterMetric 203.2 mm	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type Filter Housing	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES36120D4A1GAE1BBA2R1N1Y1, 4840901, ES36 CS DOE 4-High, 10" In/Out, 150 psi ASME, 1/ Case	Product ID 7100263824	Catalog number 4840901	OverallDiameterImperial 1.42 in	OverallDiameterMetric 36 mm	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification Double Open End	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES08004S3C1GAE3BBA0R1N1Y1, 4840207, ES08 316L SS, 226 3-Hi, 2" In / 180 Out, 150 psi ASME, 1/Case	Product ID 7100254965	Catalog number 4840207	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type Filter Housing	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES30085D3A1GAE1BBA2R1N2Y1, 4840802, ES30, CS DOE 3-High, 6" In/Out (Bottom), 150 psi ASME, 1/ Case	Product ID 7100240428	Catalog number 4840802	OverallDiameterImperial 1.18 in	OverallDiameterMetric 30 mm	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification Double Open End	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES08004T2C1GAE1BBA0R1N1Y1, 4840206, ES08 316L SS, 222 2-Hi, 2 in In/Bottom Out, 150 psi ASME, 1/Case	Product ID 7100234796	Catalog number 4840206	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Hsng ES24052D3C1GAE3BBA2R1N1Y1, 4840702, ES24, 316L SS, DOE 3-High, 6" In/Out @180, 150 psi ASME, 1/ Case	Product ID 7100231401	Catalog number 4840702	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Hsng ES12012D3C1GAE3BBA2R1N1Y1, 4840302, ES12, 316L SS, DOE 3-High, 3" In/Out @180, 150 psi ASME, 1/ Case	Product ID 7100229293	Catalog number 4840302	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES30085D3A1GAE4BBA1R1N2Y1, 4837204, ES30, CS DOE 3Hi, 6" In/Out @270, Mirror, 150 psi ASME, 1/Case	Product ID 7100229211	Catalog number 4837204	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES30085D3A1GAE2BBA3R1N2Y1, 4837203, ES30, CS DOE 3Hi, 6" In/Out @90, Mirror, 150 psi ASME, 1/Case	Product ID 7100229208	Catalog number 4837203	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES36120D4A1GAE2BBA3R1N2Y1, 4841101, ES36, CS DOE 4Hi, 8" In/Out @90, Mirror, 150 psi ASME, 1/Case	Product ID 7100222367	Catalog number 4841101	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES08006D2A1GAE3BBA0R1N1Y1, 4840204, ES08, CS, DOE 2-High, 2" In/Out (@180), 150 psi ASME, 1/Case	Product ID 7100222366	Catalog number 4840204	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES30085D4A1GAE1BBA2R1N2Y1, 4840801, ES30, CS DOE 4 High, 6 in In/Out, 150 psi ASME, 1/Case	Product ID 7100217999	Catalog number 4840801	OverallDiameterImperial 30 in	OverallDiameterMetric 762 mm	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ Zeta Plus™ SP Series Media Sheet 3914703 90SP, 26.77 in x 30.67 in, 6 Holes, 50/Case	Product ID 7100213138	Catalog number 3914703 90SP	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries SP	Brand Zeta Plus™	categoryName Filter Housings
3M™ ES Series Filter Housing ES20, 4840601, ES20036D3A1GAE3BBA2R1N1Y1, CS DOE 3-High, 6 in In/Out @180, 150 psi ASME, 1/Case	Product ID 7100213137	Catalog number 4840601	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES16, 4840501, ES16024D3A1GAE3BBA2R1N1Y1, CS DOE 3-High, 4 in In/Out@180, 150 psi ASME, 1/Case	Product ID 7100213135	Catalog number 4840501	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES12, 4840301, ES12012D3A1GAE3BBA2R1N1Y1, CS DOE 3-High, 3 in In/Out@180, 150 psi ASME, 1/Case	Product ID 7100213134	Catalog number 4840301	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES08, 4840203, ES08006D3C1GAE3BBA0R1N1Y1, 316L DOE 3-High, 2 in In/Out@180, 150 psi ASME, 1/Case	Product ID 7100213032	Catalog number 4840203	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES08, 4840202, CS/Buna DOE 3-High, 2 in In/Out (@180), 150 psi ASME, 1/Case	Product ID 7100209627	Catalog number 4840202	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES08, 4840201, ES08006D3B1GBE3BBA0R1N1Y1,304L SS, DOE 3-High, 2 in, 150 psi, EPR, 1/Case	Product ID 7100208901	Catalog number 4840201	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES14, 4840401, ES14018D3A1GCE3BFA2R1N1Y1,CS, 18 DOE Ctg, 4 in In/Out, 150 psi ASME, Fluorocarbon	Product ID 7100206464	Catalog number 4840401	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES24, 4840701, ES24052D3A1GCE1BBA2R2N2Y1,CS, 52-Around DOE, 4 in, 150 psi ASME, Spot X-Ray, 1/Case	Product ID 7100206458	Catalog number 4840701	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES16, 4811502, 3 in Flange In/Out, 150psi@250F ASME, 316L SS, PTFE, 1/Case	Product ID 7100199388	Catalog number 4811502	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES08, 4811404, ASME Code, 150 psi@250F, 2in Flange In/Out, 316L, SOE, PTFE, 1/Case	Product ID 7100199387	Catalog number 4811404	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES08, 4811304, 1 in Flange In/Out, 150psi@250F, 316L SS, PTFE, 1/Case	Product ID 7100199092	Catalog number 4811304	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES08, 4811403, 1 in Inlet/Outlet, 150psi@250F, 316L SS, SOE, PTFE, 1/Case	Product ID 7100199084	Catalog number 4811403	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES08, 4811306, 2 in Inlet/Outlet, 150psi@250F, 316L SS, PTFE, 1/Case	Product ID 7100199083	Catalog number 4811306	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES16, 4840101, 304SS, Drop-in-Place, For19SL3, 1/Case	Product ID 7100180726	Catalog number 4840101	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES12, 4837001, Carbon Steel, Nameplate at 270, 1/Case	Product ID 7100180719	Catalog number 4837001	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings
3M™ ES Series Filter Housing ES12, 4837002, Carbon Steel, 3 In Inlet/Outlet, 150 psi, Nameplate at 90, 1/Case	Product ID 7100180718	Catalog number 4837002	OverallDiameterImperial -	OverallDiameterMetric -	Overall Height (Imperial) -	Overall Height (Metric) -	End Modification -	Filter Type -	Industries Industrial water,Manufacturing	ProductSeries ES	Brand -	categoryName Filter Housings

Product details

The filter housing, with outside diameters from 8 to 36 inches, can contain from 3 to 120 DOE or SOE cartridges in 20 inch to 40 inch lengths, or up to 12 Zeta Plus™ series cartridges, depending on the diaphragm chosen. The vessel includes ASME Code stamp and National Board certification to assure that all materials and fabrication procedures meet the most stringent requirements.

Thanks to the speed of advanced computer aided design and computer integrated manufacturing, we can manufacture standard designs while also producing custom configurations within standard manufacturing processes. The standard housing is offered with 150 or 300 psi designs and can be easily configured for specific system requirements.

Options such as outlet and cover lifting device location (not available on model ES08), radiography, and surface finish can be added onto the base model to create a versatile filter vessel. The 3M™ ES series filter housing is designed and manufactured using state-of-the-art manufacturing techniques. By engineering flexibility in design and exploiting advances in metal fabrication, 3M Purification Inc. is able to offer a "custom inch design in a "standard inch product line - in the same production cycle time as an "off-the-shelf inch product.

Manufactured from 304L, 316L, or carbon steel to meet application requirements
User-friendly cover lifting device for easy cartridge change-outs
ASME Code design with stamp
Double open end (DOE), single open end (SOE), and Zeta Plus™ Series Cartridge styles available for maximum filter cartridge applicability

Product specifications

Industries	Industries Industrial water,Manufacturing
Catalog number	Catalog number 4840401, 4840101, 4840702, 4840206, 4837203, 4811403, 4811306, 4837003, 4837004, 4840201, 4837204, 4837002, 4840701, 4811304, 4840802, 4840202, 4841101, 4840204, 4840203, 4840303, 4840207, 4840301, 4840801, 4840501, 4840601, 4840302, 3914703 90SP
OverallDiameterImperial	OverallDiameterImperial 12 in, 30 in
Product Series	Product Series ES
categoryName	categoryName Filter Housings
Overall Height (Imperial)	Overall Height (Imperial) 4 in
FilterType	FilterType Filter Housing
Overall Diameter (Imperial)	Overall Diameter (Imperial) 1.42 in, 8 in, 1.18 in
OverallHeightMetric	OverallHeightMetric 101.6 mm
GLBL_CAT_NBR	GLBL_CAT_NBR 4811502, 4811404, 4840502, 4840901, 4840208, 4837001
Overall Diameter (Metric)	Overall Diameter (Metric) 36 mm, 203.2 mm, 30 mm, 304.8 mm, 762 mm
End Modification	End Modification Double Open End
Category name	Category name Filter Housings
ProductSeries	ProductSeries ES, SP
Filter Type	Filter Type Filter Housing
Trademark2	Trademark2 Zeta Plus™
