3M™ High Flow Series Retrofit Filter Cartridge

(1) High Flow HFR: High Flow retrodit design.

(2) High Flow HFR: Wide ergonomic handle.

high-flow-series-retrofit-filter-cartridge-pdp-secondary-image-3-pf-if-en-us.tif

high-flow-series-retrofit-filter-cartridge-pdp-secondary-image-2-pf-if-en-us.tif

(3) High Flow HFR: 3M lofted filtration media.

high-flow-series-retrofit-filter-cartridge-pdp-secondary-image-1-pf-if-en-us.tif

(3) High Flow HFR: Advanced Pleat Technology.

high-flow-series-retrofit-filter-cartridge-pdp-secondary-image-4-pf-if-en-us.tif

About the product

Oﬀering a high inside-to-outside ﬂow capacity, 3M™ High Flow HFR Series Retroﬁt Filter Cartridges have an absolute retention rating to help remove particles and other contaminants from water, industrial chemicals and liquid food and beverages*. Using 3M’s multi-layer media, these high ﬂow retroﬁt ﬁlters ﬁt into third-party inside-to-outside ﬂow housings and help reduce operating costs.

Ask an expert

Find a distributor

Product options

1-5 of Products

Select Filters to narrow your product list

Catalog number

Overall Length (Imperial)

Overall Length (Metric)

Flow Rate (Imperial)

Flow Rate (Metric)

Micron Rating (Absolute)

Industries

Product name	Product ID	Catalog number	Overall Width (Imperial)	Overall Width (Metric)	Overall Length (Imperial)	Overall Length (Metric)	Overall Diameter (Imperial)	Overall Diameter (Metric)	Product Type	Flow Rate (Imperial)	Product Form	Flow Rate (Metric)	Filter Type	Grade	Micron Rating (Absolute)	Filter Technology	Industries	Product Series	Category name
3M™ High Flow Series Retrofit Filter Cartridge HFR40PPA05A, 40 in, 5 μm ABS, Silicone O-Ring, 1/CS	Product ID 7100341676	Catalog number HFR40PPA05A	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 40 in	Overall Length (Metric) 101.6 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) -	Product Form Cartridge	Flow Rate (Metric) 70 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 5 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR20PPA40C, 20 in, 40 μm ABS, EPDM, 1/CS	Product ID 7100313509	Catalog number HFR20PPA40C	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 20 in	Overall Length (Metric) 50.8 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 154.117 gal/min	Product Form Cartridge	Flow Rate (Metric) 35 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 40 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR20PPA05C, 20 in, 5 μm ABS, EPDM, 1/CS	Product ID 7100313508	Catalog number HFR20PPA05C	Overall Width (Imperial) 6.3 in	Overall Width (Metric) 16 cm	Overall Length (Imperial) 20 in	Overall Length (Metric) 50.8 cm	Overall Diameter (Imperial) -	Overall Diameter (Metric) -	Product Type -	Flow Rate (Imperial) -	Product Form -	Flow Rate (Metric) -	Filter Type Surface	Grade -	Micron Rating (Absolute) 5 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR20PPA40D, 20 in, 40 umABS, Nitrile, 1/Case	Product ID 7100202564	Catalog number HFR20PPA40D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 20 in	Overall Length (Metric) 50.8 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 154.117 gal/min	Product Form Cartridge	Flow Rate (Metric) 35 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 40 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR20PPA100D, 20 in, 100um ABS, Nitrile, 1/Case	Product ID 7100202448	Catalog number HFR20PPA100D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 20 in	Overall Length (Metric) 50.8 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 154.117 gal/min	Product Form Cartridge	Flow Rate (Metric) 35 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 100 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR60PPA100D, 60 in, 100um ABS, Nitrile, 1/Case	Product ID 7100202447	Catalog number HFR60PPA100D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 60 in	Overall Length (Metric) 152.4 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 440.335 gal/min	Product Form Cartridge	Flow Rate (Metric) 100 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 100 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR20PPA70D, 20 in, 70 umABS, Nitrile, 1/Case	Product ID 7100202446	Catalog number HFR20PPA70D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 20 in	Overall Length (Metric) 50.8 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 154.117 gal/min	Product Form Cartridge	Flow Rate (Metric) 35 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 70 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR60PPA40D, 60 in, 40 umABS, Nitrile, 1/Case	Product ID 7100202445	Catalog number HFR60PPA40D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 60 in	Overall Length (Metric) 152.4 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 440.335 gal/min	Product Form Cartridge	Flow Rate (Metric) 100 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 40 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR60PPA05C, 60in., 5μmABS, EPDM O-Ring, 1/CS	Product ID 7100202096	Catalog number HFR60PPA05C	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 60 in	Overall Length (Metric) 152.4 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 440.335 gal/min	Product Form Cartridge	Flow Rate (Metric) 100 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 5 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series -	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR60PPA020C, 60in., 20μmABS, EPDM O-Ring, 1/CS	Product ID 7100202095	Catalog number HFR60PPA20C	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 60 in	Overall Length (Metric) 152.4 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 440.335 gal/min	Product Form Cartridge	Flow Rate (Metric) 100 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 20 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series -	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR60PPA010C, 60in., 10μmABS, EPDM O-Ring, 1/CS	Product ID 7100202094	Catalog number HFR60PPA10C	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 60 in	Overall Length (Metric) 152.4 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 440.335 gal/min	Product Form Cartridge	Flow Rate (Metric) 100 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 10 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series -	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR40PPA040C, 40in., 40μmABS, EPDM O-Ring, 1/CS	Product ID 7100201184	Catalog number HFR40PPA40C	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 40 in	Overall Length (Metric) 101.6 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 308.234 gal/min	Product Form Cartridge	Flow Rate (Metric) 70 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 40 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR60PPA70D, 60 in, 70 umABS, Nitrile , 1/Case	Product ID 7100200719	Catalog number HFR60PPA70D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 60 in	Overall Length (Metric) 152.4 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 440.335 gal/min	Product Form Cartridge	Flow Rate (Metric) 100 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 70 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR40PPA010C, 40in., 10μmABS, EPDM O-Ring, 1/CS	Product ID 7100200247	Catalog number HFR40PPA10C	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 40 in	Overall Length (Metric) 101.6 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 308.234 gal/min	Product Form Cartridge	Flow Rate (Metric) 70 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 10 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR40PPA070C, 40in., 70μmABS, EPDM O-Ring, 1/CS	Product ID 7100200234	Catalog number HFR40PPA70C	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 40 in	Overall Length (Metric) 101.6 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 308.234 gal/min	Product Form Cartridge	Flow Rate (Metric) 70 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 70 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR40PPA100C, 40in.,100μm ABS, EPDM O-Ring, 1/CS	Product ID 7100200219	Catalog number HFR40PPA100C	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 40 in	Overall Length (Metric) 101.6 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 308.234 gal/min	Product Form Cartridge	Flow Rate (Metric) 70 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 100 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR40PPA020C, 40in., 20μmABS, EPDM O-Ring, 1/CS	Product ID 7100200192	Catalog number HFR40PPA20C	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 40 in	Overall Length (Metric) 101.6 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 308.234 gal/min	Product Form Cartridge	Flow Rate (Metric) 70 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 20 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR40PPA05C, 40in., 5μmABS, EPDM O-Ring, 1/CS	Product ID 7100199912	Catalog number HFR40PPA05C	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 40 in	Overall Length (Metric) 101.6 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 308.234 gal/min	Product Form Cartridge	Flow Rate (Metric) 70 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 5 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR60PPA100C, 60in.,100μm ABS, EPDM O-Ring, 1/CS	Product ID 7100185573	Catalog number HFR60PPA100C	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 60 in	Overall Length (Metric) 152.4 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 440.335 gal/min	Product Form Cartridge	Flow Rate (Metric) 100 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 100 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR40PPA100A, 40 in, 100μm ABS, Silicone O-Ring, 1/CS	Product ID 7100184161	Catalog number HFR40PPA100A	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 40 in	Overall Length (Metric) 101.6 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 308.234 gal/min	Product Form Cartridge	Flow Rate (Metric) 70 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 100 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR40PPA100D, 40 in, 100um ABS, Nitrile, 1/Case	Product ID 7100171768	Catalog number HFR40PPA100D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 40 in	Overall Length (Metric) 101.6 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 308.234 gal/min	Product Form Cartridge	Flow Rate (Metric) 70 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 100 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR40PPA70D, 40 in, 70 umABS, Nitrile, 1/Case	Product ID 7100171767	Catalog number HFR40PPA70D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 40 in	Overall Length (Metric) 101.6 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 308.234 gal/min	Product Form Cartridge	Flow Rate (Metric) 70 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 70 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR40PPA40D, 40 in, 40 umABS, Nitrile, 1/Case	Product ID 7100171766	Catalog number HFR40PPA40D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 40 in	Overall Length (Metric) 101.6 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 308.234 gal/min	Product Form Cartridge	Flow Rate (Metric) 70 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 40 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR40PPA05D, 40 in, 5 umABS, Nitrile O-Ring, 1/Case	Product ID 7100168847	Catalog number HFR40PPA05D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 40 in	Overall Length (Metric) 101.6 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 308.234 gal/min	Product Form Cartridge	Flow Rate (Metric) 70 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 5 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR40PPA10D, 40 in, 10 umABS, Nitrile O-Ring, 1/Case	Product ID 7100168846	Catalog number HFR40PPA10D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 40 in	Overall Length (Metric) 101.6 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 308.234 gal/min	Product Form Cartridge	Flow Rate (Metric) 70 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 10 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Filter Cartridge HFR60PPA20D, White, 1/Case	Product ID 7100168845	Catalog number HFR60PPA20D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 60 in	Overall Length (Metric) 152.4 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 440.335 gal/min	Product Form Cartridge	Flow Rate (Metric) 100 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 20 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR60PPA10D, 60 in, 10 umABS, Nitrile O-Ring, 1/Case	Product ID 7100168844	Catalog number HFR60PPA10D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 60 in	Overall Length (Metric) 152.4 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 440.335 gal/min	Product Form Cartridge	Flow Rate (Metric) 100 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 10 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR40PPA20D, 40 in, 20 umABS, Nitrile O-Ring, 1/Case	Product ID 7100168843	Catalog number HFR40PPA20D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 40 in	Overall Length (Metric) 101.6 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 308.234 gal/min	Product Form Cartridge	Flow Rate (Metric) 70 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 20 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR20PPA20D, 20 in, 20 umABS, Nitrile O-Ring, 1/Case	Product ID 7100168842	Catalog number HFR20PPA20D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 20 in	Overall Length (Metric) 50.8 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 154.117 gal/min	Product Form Cartridge	Flow Rate (Metric) 35 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 20 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR20PPA10D, 20 in, 10 umABS, Nitrile, 1/Case	Product ID 7100168841	Catalog number HFR20PPA10D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 20 in	Overall Length (Metric) 50.8 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 154.117 gal/min	Product Form Cartridge	Flow Rate (Metric) 35 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 10 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR20PPA05D, 20 in, 5 umABS, Nitrile, 1/Case	Product ID 7100168840	Catalog number HFR20PPA05D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 20 in	Overall Length (Metric) 50.8 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 154.117 gal/min	Product Form Cartridge	Flow Rate (Metric) 35 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 5 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR60PPA70C, 60 in., 70μmABS, EPDM O-Ring, 1/CS	Product ID 7100159930	Catalog number HFR60PPA70C	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 60 in	Overall Length (Metric) 152.4 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 440.335 gal/min	Product Form Cartridge	Flow Rate (Metric) 100 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 70 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR60PPA40C, 60 in., 40μmABS, EPDM O-Ring 1/CS	Product ID 7100159929	Catalog number HFR60PPA40E	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 60 in	Overall Length (Metric) 152.4 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 440.335 gal/min	Product Form Cartridge	Flow Rate (Metric) 100 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 40 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Filter Cartridge HFR60PPA05D, White, 1/Case	Product ID 7100156964	Catalog number HFR60PPA05D	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 60 in	Overall Length (Metric) 152.4 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 440.335 gal/min	Product Form Cartridge	Flow Rate (Metric) 100 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 5 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series High Flow	Category name Pleated Membrane Cartridges
3M™ High Flow Series Retrofit Filter Cartridge HFR20PPA20C, 20 in, 20 μm ABS, EPDM, 1/CS	Product ID 7010680728	Catalog number HFR20PPA20C	Overall Width (Imperial) -	Overall Width (Metric) -	Overall Length (Imperial) 20 in	Overall Length (Metric) 50.8 cm	Overall Diameter (Imperial) 6 in	Overall Diameter (Metric) 15.24 cm	Product Type Pleated Non-Woven Media	Flow Rate (Imperial) 154.117 gal/min	Product Form Cartridge	Flow Rate (Metric) 35 m³/hr	Filter Type Surface	Grade HFR	Micron Rating (Absolute) 20 absolute, @ 99.9%	Filter Technology Non-woven	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation	Product Series -	Category name Pleated Membrane Cartridges

Product details

3M™ High Flow HFR Series Filter Cartridges feature our Advanced Pleat Technology (APT) with wide pleated ﬁlters to maximise the usable ﬁltration area for an increased ﬂow capacity and a long ﬁlter life for numerous applications. The result is a higher ﬂow rate with fewer ﬁlters for a more sustainable solution. The robust O-ring reduces the chance of ﬂuid bypass. 3M’s tightly controlled speciﬁcations during the manufacturing process create a ﬁlter media with absolute-rated particle retention characteristics.

Advanced Pleat Technology.

3M’s APT design increases ﬂow capacity and the usable ﬁltration area.

3M lofted microﬁber ﬁltration media.

3M’s lofted microﬁber ﬁltration media designed for applications containing organic and/or biological contaminants helps improve performance for a longer ﬁlter life.

High ﬂow capability.

Designed to accommodate high ﬂow rates for industrial applications, 3M™High Flow HFR Series Filter Cartridges require fewer ﬁlters to maintain your process ﬂow requirements.

Suitable for food contact use.

For details related to speciﬁc use conditions or limitations for food contact applications please contact your 3M Representative for more information.

Constructed of a polypropylene microﬁber media, 3Mpleated ﬁlter cartridges have a uniform matrix, eﬄuent quality and a high particle removal eﬃciency throughout the ﬁlter life. The lofted media design helps prevent premature blinding of the ﬁlter’s outer surface, promoting fuller utilisation of the media, resulting in an optimum combination of particle removal eﬃciency and contaminant holding capability.

Ideal for a wide range of industrial ﬁltration applications, the 3M™ High Flow HFR Series Microﬁber Filter Media is optimised for use in process water applications containing organic contaminants, as well as particulates. 3M™ High Flow HFR Series Filter Cartridges are available in 6 distinct absolute micron ratings ranging from 5 to 100 microns and 3 integral lengths, 20, 40 and 60 inches, to ﬁt third-party ﬁlter housings. All ﬁlter components are thermally bonded to provide a structurally integral ﬁlter. No resins, binders or adhesives are used in the manufacturing process.

*For details related to specific use conditions or limitations for food contact applications, please contact your 3M representative for more information.

Advanced Pleat Technology (APT) provides long ﬁlter life by increasing the usable ﬁltration area
3M lofted microﬁber ﬁltration media oﬀers high particle and organic removal eﬃciencies, high contaminant capacity and extended service life
Absolute-rated ﬁlters provide consistent and reproducible contaminant reduction
Wide ergonomic handle provides comfortable grip during change-outs, even when wearing gloves
Single ﬁlter seal point reduces chance of ﬂuid bypass
Designed to retroﬁt into existing third-party inside-to-outside ﬂow housings
Extensive food contact compliance - For details related to specific use conditions or limitations for food contact applications, please contact your 3M Representative for more information

Suggested Applications

Food & Beverage
Utility water
Parts washing (OEM)
Desalination
Pre-RO water
Condensing water ﬁltration
Process waters
Boiler feed water
Injection and produced waters
Ground / reclaimed / waste waters
Reﬁning (amine sweetening, ﬁnal product)
Coolants

Product specifications

Industries	Industries Chemical manufacturing,Food & beverage manufacturing,Industrial water,Manufacturing,Microelectronics,Steam & power generation
Product Form	Product Form Cartridge
Filter Technology	Filter Technology Non-woven
Catalog number	Catalog number HFR40PPA05A, HFR60PPA40E, HFR20PPA10D, HFR60PPA40D, HFR20PPA20D, HFR40PPA20D, HFR20PPA40D, HFR60PPA10D, HFR20PPA100D, HFR40PPA10C, HFR20PPA70D, HFR60PPA100D, HFR20PPA05D, HFR40PPA100C, HFR60PPA70D, HFR40PPA100D, HFR40PPA70D, HFR40PPA40D, HFR60PPA05D, HFR40PPA05C, HFR60PPA70C, HFR60PPA20C, HFR60PPA05C, HFR60PPA10C, HFR40PPA20C, HFR40PPA40C, HFR40PPA70C, HFR60PPA100C, HFR60PPA20D, HFR40PPA10D, HFR20PPA20C, HFR20PPA40C, HFR40PPA100A, HFR40PPA05D, HFR20PPA05C
Grade	Grade HFR
Micron Rating (Absolute)	Micron Rating (Absolute) 5 absolute, @ 99.9%, 40 absolute, @ 99.9%, 10 absolute, @ 99.9%, 20 absolute, @ 99.9%, 100 absolute, @ 99.9%, 70 absolute, @ 99.9%
Product Series	Product Series High Flow
Flow Rate (Metric)	Flow Rate (Metric) 70 m³/hr, 100 m³/hr, 35 m³/hr
Flow Rate (Imperial)	Flow Rate (Imperial) 440.335 gal/min, 154.117 gal/min, 308.234 gal/min
Overall Length (Imperial)	Overall Length (Imperial) 40 in, 60 in, 20 in
Overall Diameter (Imperial)	Overall Diameter (Imperial) 6 in
Overall Width (Metric)	Overall Width (Metric) 16 cm
Overall Length (Metric)	Overall Length (Metric) 101.6 cm, 152.4 cm, 50.8 cm
Product Type	Product Type Pleated Non-Woven Media
Overall Diameter (Metric)	Overall Diameter (Metric) 15.24 cm
Category name	Category name Pleated Membrane Cartridges
Filter Type	Filter Type Surface
Overall Width (Imperial)	Overall Width (Imperial) 6.3 in

Distributors

Solventum Filtration Distributor	Headquarter Location	Contact	Contact Email	Contact Phone	Website
A.M. Fluid Equipment, Inc.	Bethany, CT	Ross Nelson	ross.nelson@amfe-filter.com	203-393-2360	https://amfluid.com
BMB Filtration	Jacksonville, FL	Butch Lee	butch@bmbent.net	904-880-7925	https://bmbfiltration.com/
Calhoun & De Jong, Inc.	Portland, OR; Seattle, WA	Ed Calhoun	ed@cdisales.com	1-866-288-5091	https://cdisales.com
C.C. Day Company	Minneapolis, MN	Chris Magnine	cmagnine@ccday.com	763-350-3415	https://ccday.com
Danner Associates	Rockland, MA	Brian Danner	bdanner@dannerassoc.com	781-982-7020	https://www.dannerassociates.com/
Eggelhof Incorporated	Houston, TX	Ben Ellis	bellis@eggelhof.com	832-301-0966	https://www.eggelhof.com/
Enpro Inc.	Addison, IL	John Burnett	john_burnett@enproinc.com	314-378-6829	https://enpro.com/
Filter Equipment Co., Inc.	Wall, NJ	Scott Groh	scgroh@filter-equipment.com	908-216-3879	http://www.filter-equipment.com/
George Yardley Company	Santa Ana, CA	Rob Yardley	rob@georgeyardley.com	714-241-7700	https://georgeyardley.com/
Hagedorn & Gannon Co., Inc.	Fenton, MO	Ty Van Buren	tvanburen@hgcoinc.com	636-349-3370	https://www.hgcoinc.com/
Hatfield and Company, Inc.	Rockwall, TX	Jason Reed	jreed@hatfieldandcompany.com	832-671-9719	https://www.hatfieldandcompany.com/
MSC Industrial Supply	Melville, NY	Jim Keating	jim.keating@mscdirect.com	440-656-8042	https://www.mscdirect.com/
Pack-n-Tape	Lafayette, CO	Lisa Higginbotham	lhigginbotham@pack-n-tape.com	888-262-1988	https://pack-n-tape.com/
Rawson Industrial Controls	Daphne, AL	Mike Mercier	mike.mercier@rawsonlp.com	404-281-5704	https://rawsonicd.com/
Ryan Herco Flow Solutions	Santa Ana, CA	Bob Lucas	blucas@rhfs.com	612-889-9248	https://www.rhfs.com/
SunSource	Addison, IL	Tom Lisy	tom.lisy@sunsrce.com	440-935-4994	https://www.sun-source.com/

Ask an expert

*All fields are required unless indicated optional

How can Solventum help?

First name

Last name

Email address

Phone number

Country

State or Province

Zip or Postal Code

Industry

Job Role

Application

Company

How did you hear about us? (check all that apply)

Social Media Search Engine Event/Tradeshow Third Party Publication Webinar Recommended by a friend or colleague Email Online ad

Provide additional information on how we can help here (Optional)

Subscribe to receive marketing emails about Solventum products, promotions and events.

Solventum will use the information to respond to your request and in accordance with our Privacy Policy.

3M™ High Flow Series Retrofit Filter Cartridge

Product details

Product specifications

Distributors

Ask an expert

Looking for more?

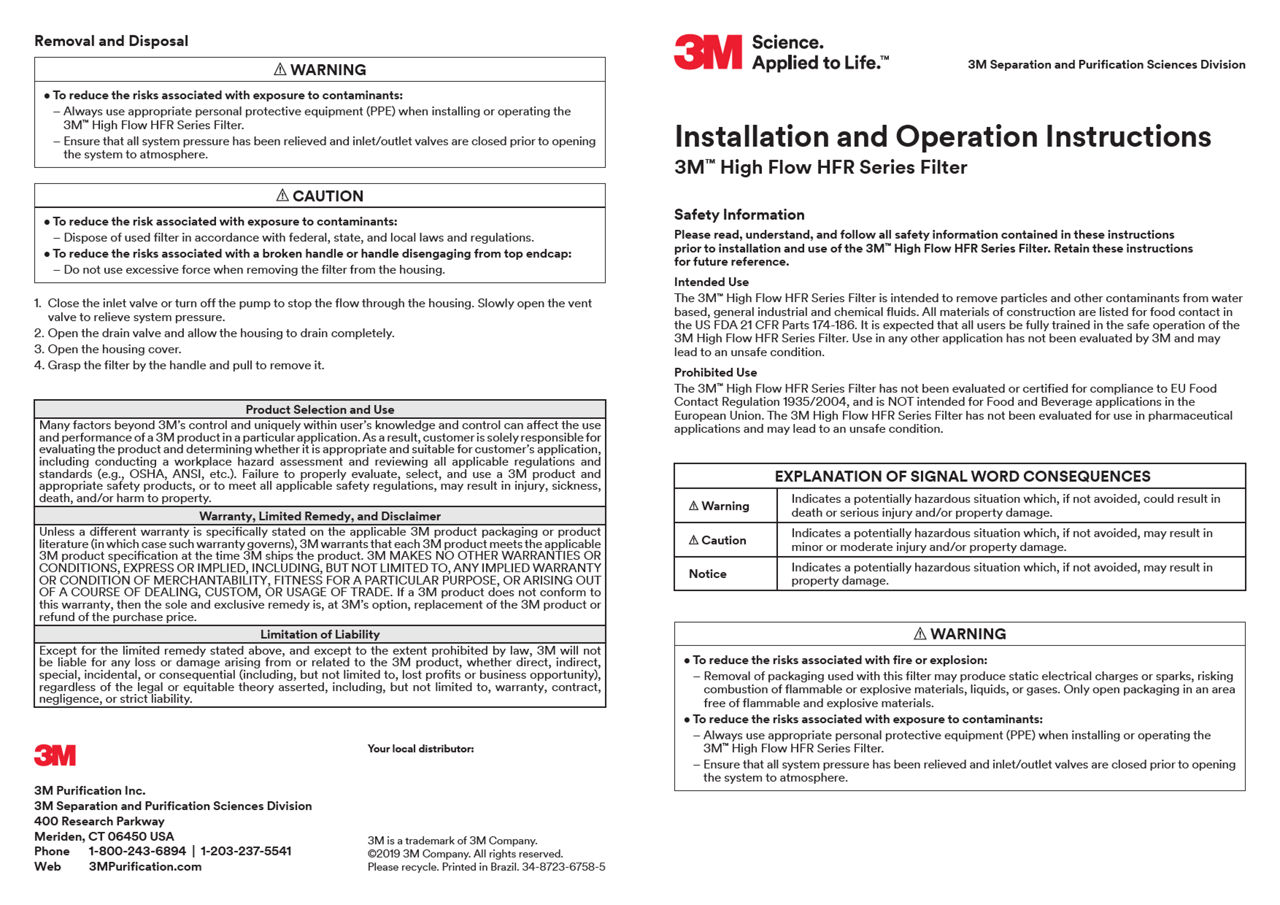

Instructions for use
