3M™ MacroPES™ Flat Sheet Membrane

6 Products available

undefined

Hover over image to zoom

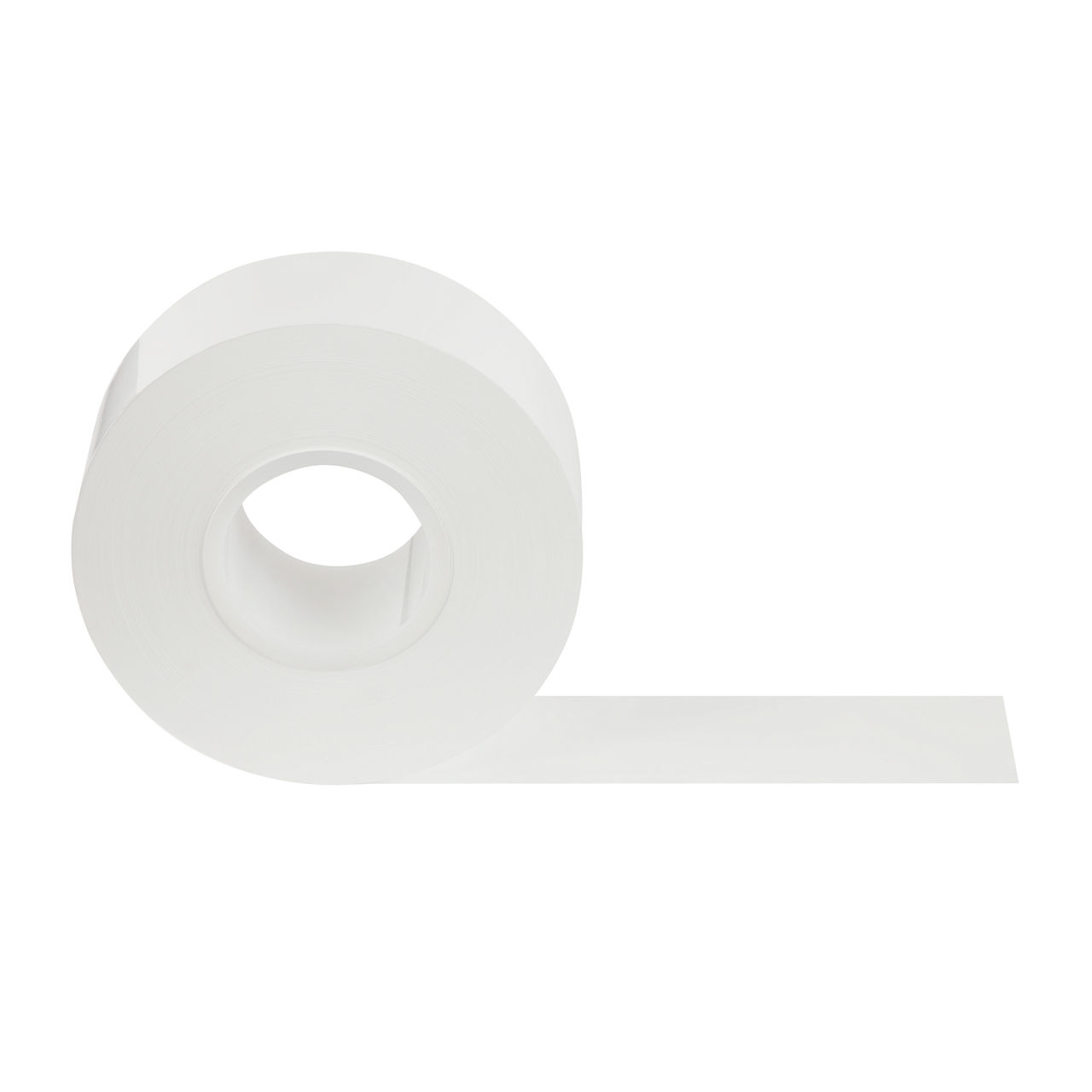

3M™ MacroPES™ Flat Sheet Membrane

About the product

The 3M™ MacroPES™ Flat Sheet Membranes pore structure in combination with the relatively open surface is responsible for the high filtration performance with a low tendency to blocking.

Product options

1-5 of 6 Products

Select Filters to narrow your product list

Product details

Due to the slightly asymmetrical distribution of the pores, the retention layer lies protected inside the cross-section, while the surface with its open pore structure ensures high filtration performance. The material used is characterized by excellent wetting properties due to polar surface. MacroPES Flat Sheet Membranes possess good thermal welding properties for applications in various industries.
  • 3M™ MacroPES™ is available in large nominal pore sizes of 3µm and 5µm
  • 3M™ MacroPES™ Flat Sheet Membranes can be sterilized by ETO- and gamma-irradiation
  • Good processability due to high mechanical strength
  • Low tendency to blocking
  • High flux results on 3M™ MacroPES™ series
  • Made from Polyethersulfone
  • Good thermal welding and good bond ability
  • Pores are evenly distributed over the surface of the membrane
  • Excellent wetting properties due to polar surface
  • Negative zeta potential of the membrane
  • Withstands dilute acids and bases (pH 2-12), and a many different solvent
  • Chemical enhanced backwash with common chemical cleaners, such as hydrochloric acid, citric acid formic acid, acetic acid, sodium hydroxide or sodium hypochlorite does not affect the mechanical stability of the membranes

Product specifications

Brand
Brand

MacroPES™

Product Form
Product Form

Roll

Overall Width (Metric)
Overall Width (Metric)

22.5 mm, 25 mm, 20 mm, 254 mm, 36 mm, 270 mm

Micron Rating
Micron Rating

3 μm

Product Series
Product Series

25

Category name
Category name

Filtration Media

Overall Width (Imperial)
Overall Width (Imperial)

0.89 in, 0.98 in, 0.79 in, 10 in, 1.42 in, 10.63 in

Application
Application

Industrial membrane filtration
