  1. 3M™ MicroPES™ Flat Sheet Membranes

3M™ MicroPES™ 2F PH Series Flat Sheet Membrane, W135237, 254 mm Roll/ Variable Pack

undefined

Hover over image to zoom

  • 2/4
  • 3/4
  • 4/4
3M™ MicroPES™ 2F PH Series Flat Sheet Membrane, W135237, 254 mm Roll/ Variable Pack
3M™ Flat Sheet Membrane on Roll
3M™ Flat Sheet Membrane on Roll

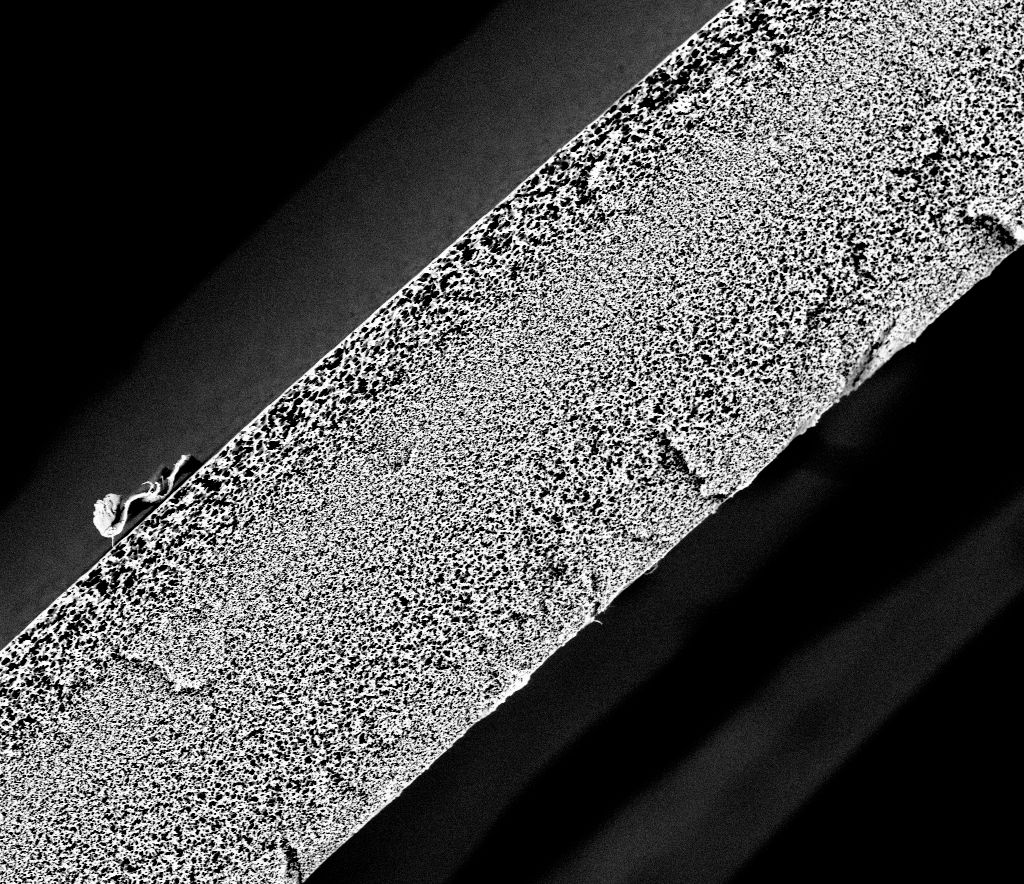

3M™ MicroPES™ 2F PH Series Flat Sheet Membrane, Microscopic Image

1-4 of 4

About the product

The asymmetric pore structure of 3M™ MicroPES™ Flat Sheet Membrane provides high throughput performance in a wide range of applications due to different pore sizes available.

Details

View other product options
  • Brand : MicroPES™
  • Product Form : Roll
  • OverallWidthImperial : 10 in
  • Filter Technology : Membrane
  • Micron Rating : 0.2 μm
  • ProductSeries : 2F PH
  • OverallWidthMetric : 254 mm
  • Application : Industrial membrane filtration
  • categoryName : Filtration Media

Product details

The evenly distributed pores form an asymmetrical structure along the thickness of the membrane with pronounced depth filtration characteristics. 3M™ MicroPES™ Flat Sheet Membrane is used in various applications requiring high retention. It can be processed using common pleating and welding techniques and is also available in a wide variety of pore sizes to meet the needs of various specific applications. Chemically enhanced backwash with chemical cleaners, such as hydrochloric acid, citric acid, acetic acid, sodium hydroxide, or sodium hypochlorite, does not affect the mechanical stability of the membrane. 3M™ MicroPES™ Flat Sheet Membrane offers proven throughput performance due to its asymmetric pore structure.
  • 3M™ MicroPES™ Flat Sheet Membranes are made from polyether sulphone
  • The asymmetric pore structure of 3M™ MicroPES™ Flat Sheet Membrane provides high-performance in depth filtration for a wide range of applications due to different pore sizes available
  • The 3M™ MicroPES™ Flat Sheet Membrane retention layer is well protected inside the cross section
  • Good processability due to high mechanical strength
  • Can be processed with common pleating and welding processes
  • 3M™ MicroPES™ Flat Sheet Membranes can be sterilized by ETO or gamma irradiation
  • 3M™ MicroPES™ Flat Sheet Membranes are resistant against chemicals used in cleaning procedures, such as hydrochloric acid, citric acid, acetic acid, sodium hydroxide, or sodium hypochlorite
  • 3M™ MicroPES™ Flat Sheet Membranes can be used in applications in a wide pH range from 2 to 12
  • 3M™ MicroPES™ Flat Sheet Membranes passed the following toxicological tests from ISO 10993: Cytotoxicity; Skin Sensitization; Irritation or Intracutaneous Reaction; Acute Systemic Toxicity; Hemolysis; Pyrogenic Reactions; Mutagenicity in Ames-Test; Implantation Test
  • 3M™ MicroPES™ Flat Sheet Membrane is EU Food Contact compliant

Product specifications

Brand
Brand

MicroPES™

Product Form
Product Form

Roll

OverallWidthImperial
OverallWidthImperial

10 in

Filter Technology
Filter Technology

Membrane

Micron Rating
Micron Rating

0.2 μm

ProductSeries
ProductSeries

2F PH

OverallWidthMetric
OverallWidthMetric

254 mm

Application
Application

Industrial membrane filtration

categoryName
categoryName

Filtration Media

Resources

1-1 of 1 Resource

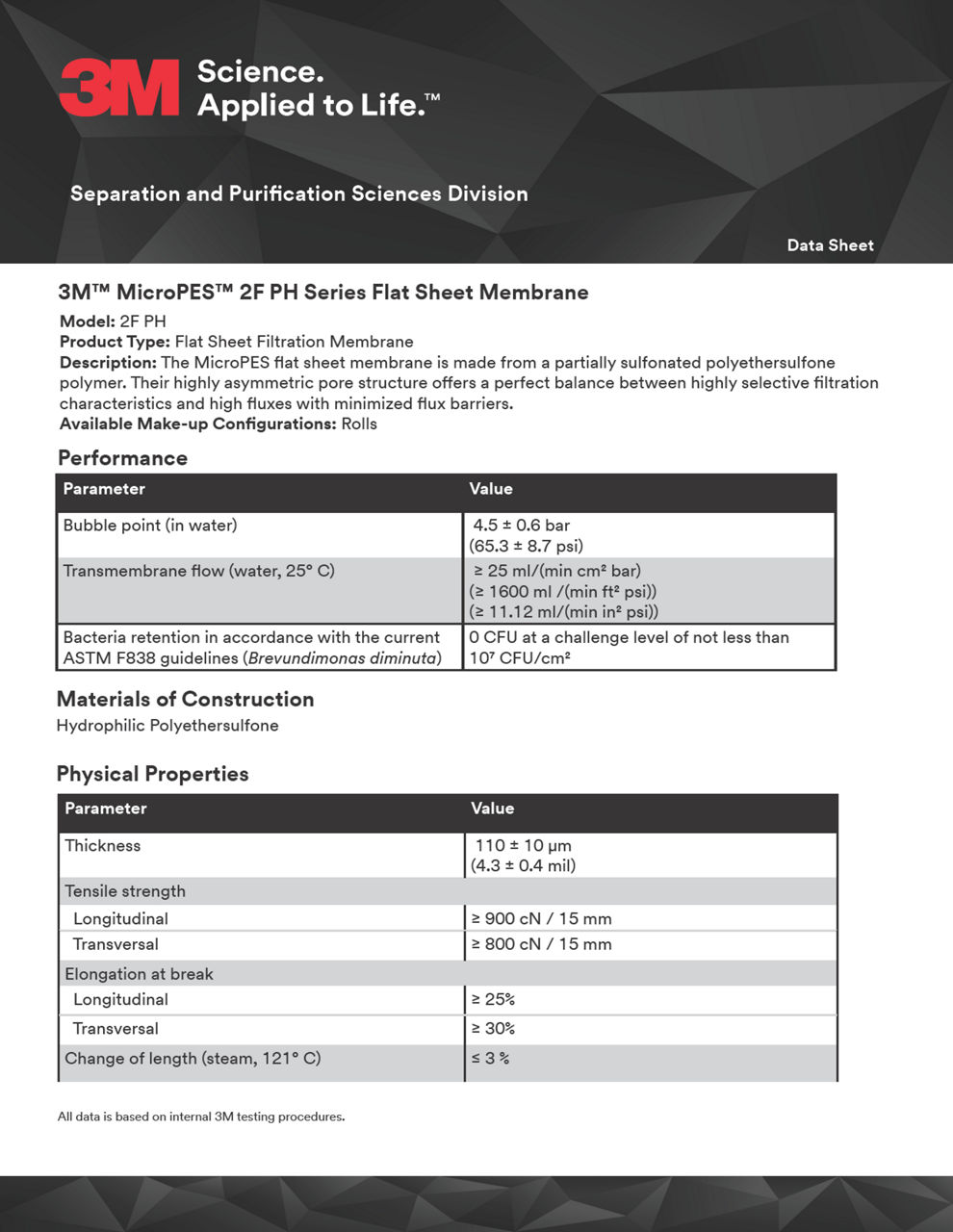

3M™ MicroPES™ 2F PH Data Sheet

3M™ MicroPES™ 2F PH Data Sheet

Technical Data Sheet. Customer needs this document for product selection and documentation in case of purchase

View Document
