3M™ Zeta Plus™ LP Series Filter Cartridge Z16HA 60LP, 16 in x 10 3/4 in, 17 cell, Silicone, 1/Case
- 1/2
- 2/2
About the product
3M™ Zeta Plus™ LP Series filter cartridges are designed for manufacturing of biologicals and have a reduced potential of yielding false positives in drug product endotoxin testing resulting from 1,3 Beta-glucan interference in LAL assays. Filter cartridges and housings are available in 8”, 12”, and 16” diameter providing a full range of scale-up and production options.
Product details
Zeta Plus LP Series filter media comprises a mixture of high surface area inorganic particles, cellulose, and a positively charged crosslinking polymer. This media is designed for relatively low organic extractable levels by aggressively extracting the cellulose fibers. The combination of filtration efficiency and throughput results from the balance between porosity, depth, and the relatively low level anion exchange capacity: removing some negatively charged soluble contaminants and sub-micron particles via anion exchange, and larger particles by mechanical sieving.
Pharmaceutical Grade Product
The Zeta Plus LP Series filter cartridges are designed for use in blood fractionation applications. The effluent characteristics of the Zeta Plus LP Series Filter media has been tested following a number of protocols contained in the United States Pharmacopeia (USP) compendia. The Zeta Plus LP Series filter media has a reduced potential of yielding false positives in product endotoxin testing resulting from 1,3 beta-glucan interference in LAL (Endotoxin) assays.
Product Design
The Zeta Plus LP Series filter cartridges are available with single layer media. Zeta Plus cartridges are constructed from individual cells of Zeta Plus LP series filter media bonded using molded edge seals. The cells are assembled together with polypropylene ring seals under predetermined compression and unitized by three, 316 stainless steel bands.

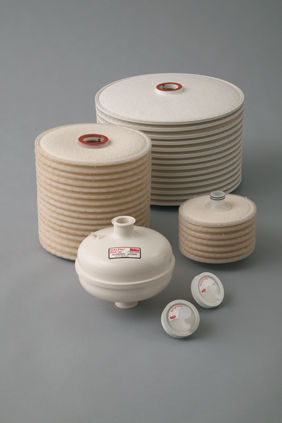

A full range of scalable filters enable predictable performance from laboratory to production. The BC25 laboratory capsule with 25 cm2 filter media is designed for media grade screening using small liquid volumes. Filter cartridges and sanitary housings are available in 8 inch, 12 inch and 16 inch diameter, with surface areas ranging from 650 cm2 to 3.9 m2 per cartridge, enabling predictable scale-up and full scale production.
- 3M™ Zeta Plus™ LP Series filter cartridges are designed for manufacturing of biological products such as blood and blood products, vaccines, allergen extracts, and cellular harvests
- Reduced potential of 1,3 Beta-glucan interference in product endotoxin testing
- Full range of scalable single-use cartridges enables predictable performance from the laboratory to commercial production
- Non-pyrogenic filter medium is unlikely to cause false positive results
- High contaminant holding capacity provides economical filtration and reliable particle reduction
- Self-contained, single-use disposable cartridge modules allows reduced labor for changeouts and eliminates cleaning validation
Suggested Applications
- Blood Products
- Antibiotics
- Diagnostics
- Intravenous Solutions
- Growth Media
- Bioprocess Fluid
Product specifications
| Industries |
Industries
Biopharmaceutical manufacturing |
| Filter Technology |
Filter Technology
Adsorbent |
| Grade |
Grade
60LP |
| Product Series |
Product Series
LP |
| Reduction Claims |
Reduction Claims
Non Pertinent |
| Brand |
Brand
Zeta Plus™ |
| Overall Height (Imperial) |
Overall Height (Imperial)
10.75 in |
| Overall Diameter (Imperial) |
Overall Diameter (Imperial)
16 in |
| Overall Diameter (Metric) |
Overall Diameter (Metric)
40.64 cm |
| End Modification |
End Modification
Double Open End |
| Category name |
Category name
Cellulose Depth Filter Cartridges |
| Filter Type |
Filter Type
Depth |
| Application |
Application
Harvest and clarification |
| Overall Height (Metric) |
Overall Height (Metric)
27.3 cm |
