Discover the art of precision

Level up your treatment plans — Clarity™ Precision Grip Attachments are 3D-printed and the procedure results in no composite flash, supporting the delivery of predictable forces to the teeth*.

*Solventum data on file

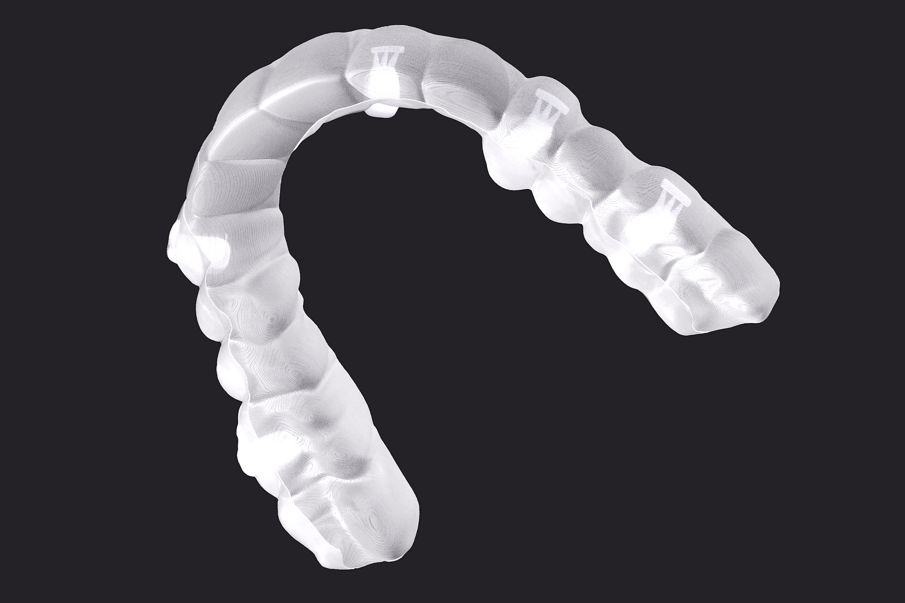

upper grip attachments

Deliver more predictable forces with 3D-printed attachments

Clarity Precision Grip Attachments are changing the game - and changing the way you work, for good. Trays come pre-loaded with precisely designed, 3D-printed, fully-cured attachments that match each patients' unique anatomy. The lack of composite flash means you can deliver more predictable forces in line with your treament plan.

A female assistant talking with a female orthodontic patient

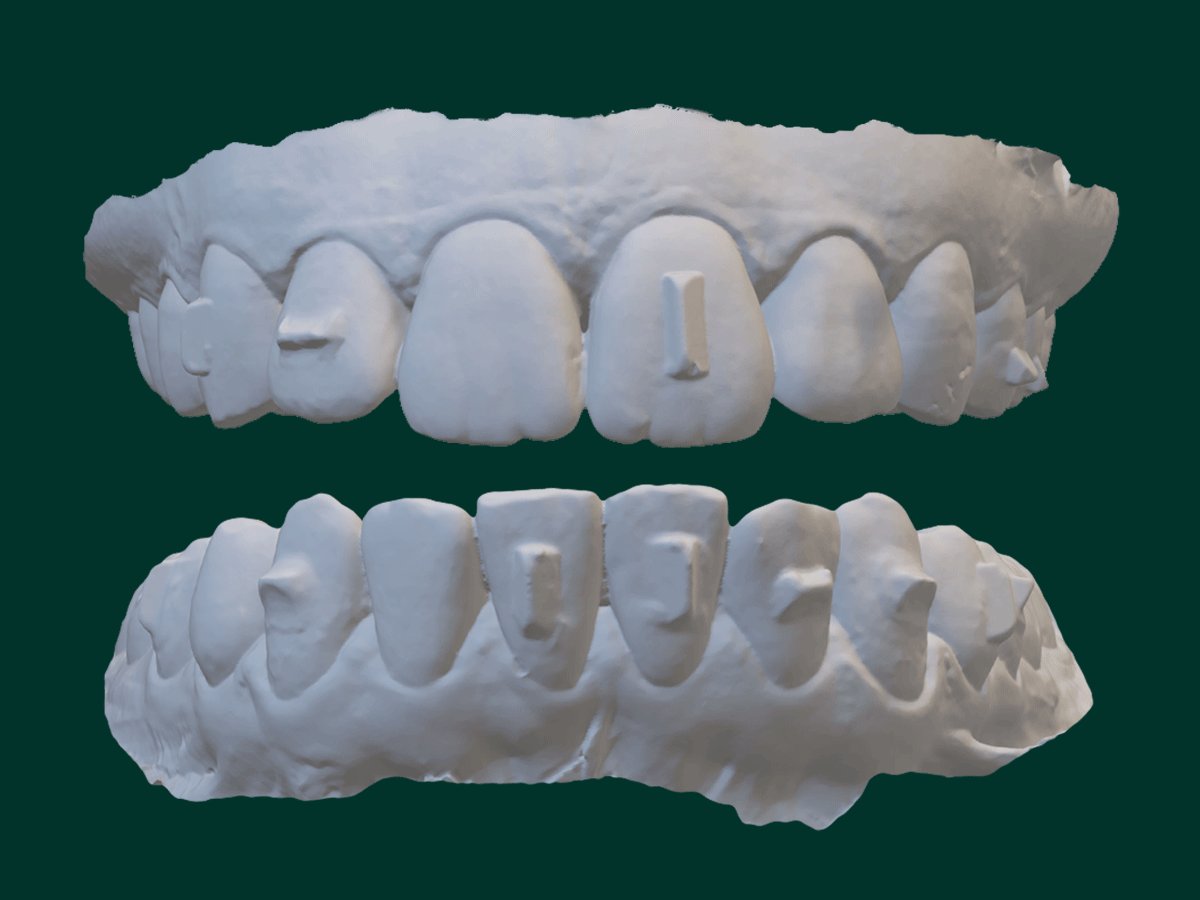

Clarity™ Precision Grip Attachments​

Hello, game changer

Our unique 3D-printed attachment system is the first of its kind for clear aligners.

  • Available exclusively for use with Clarity™ Aligners
  • Customized attachments are designed for each patient using Clarity™ Portal
  • Attachments are pre-loaded — saving 12 minutes per bonding procedure on average

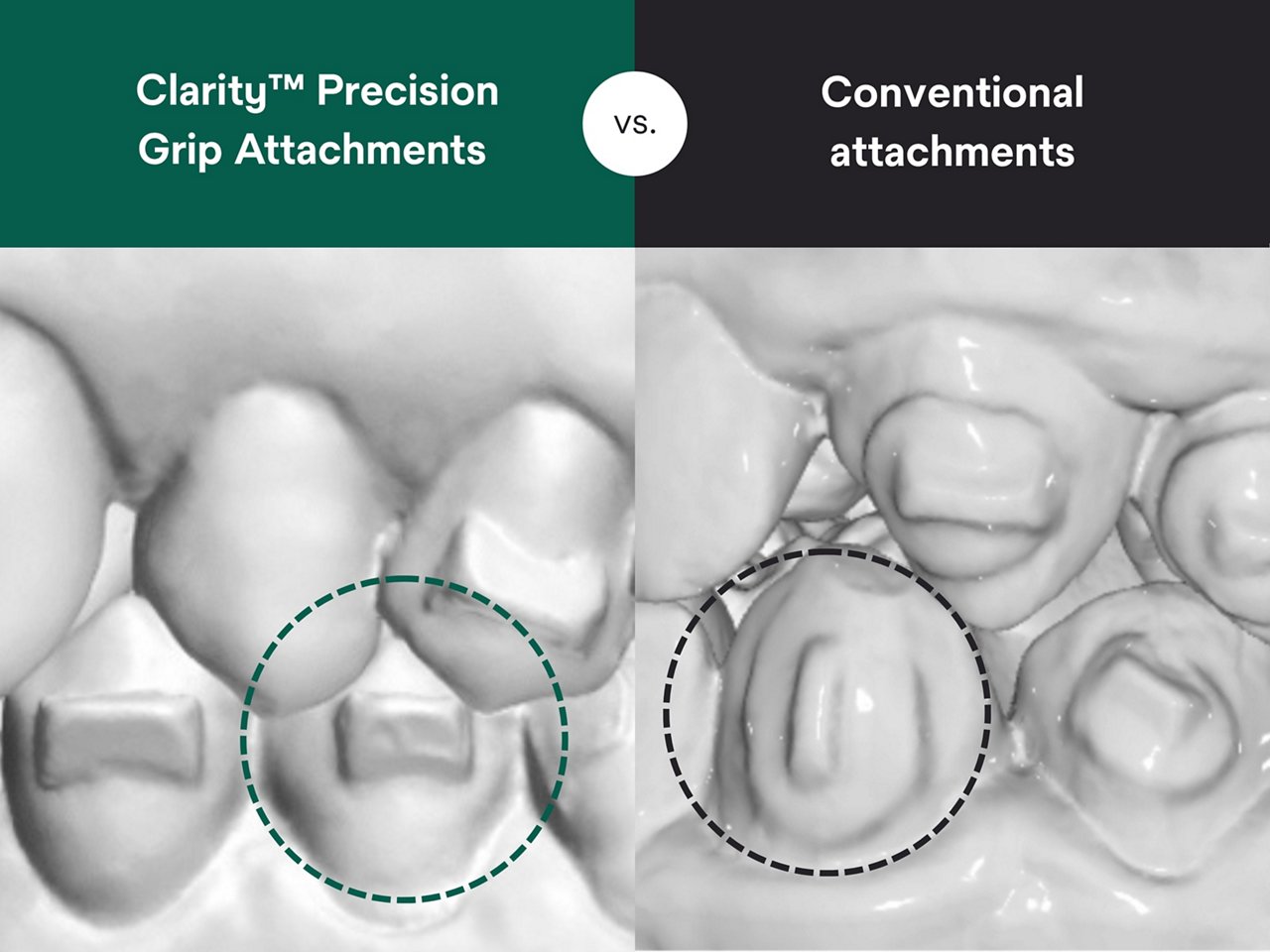

  • No flash — reducing unwanted tooth movements
  • Excellent stain resistance for clear, esthetics smiles during treatment
  • Impressive durability and high fracture strength helps the attachments maintain shape integrity

Step-by-step bonding protocol for Clarity Precision Grip Attachments

Isolate teeth using a dry field system.

Isolate teeth using a dry field system.

Prophy teeth where attachments will be bonded with an oil-free pumice or paste.

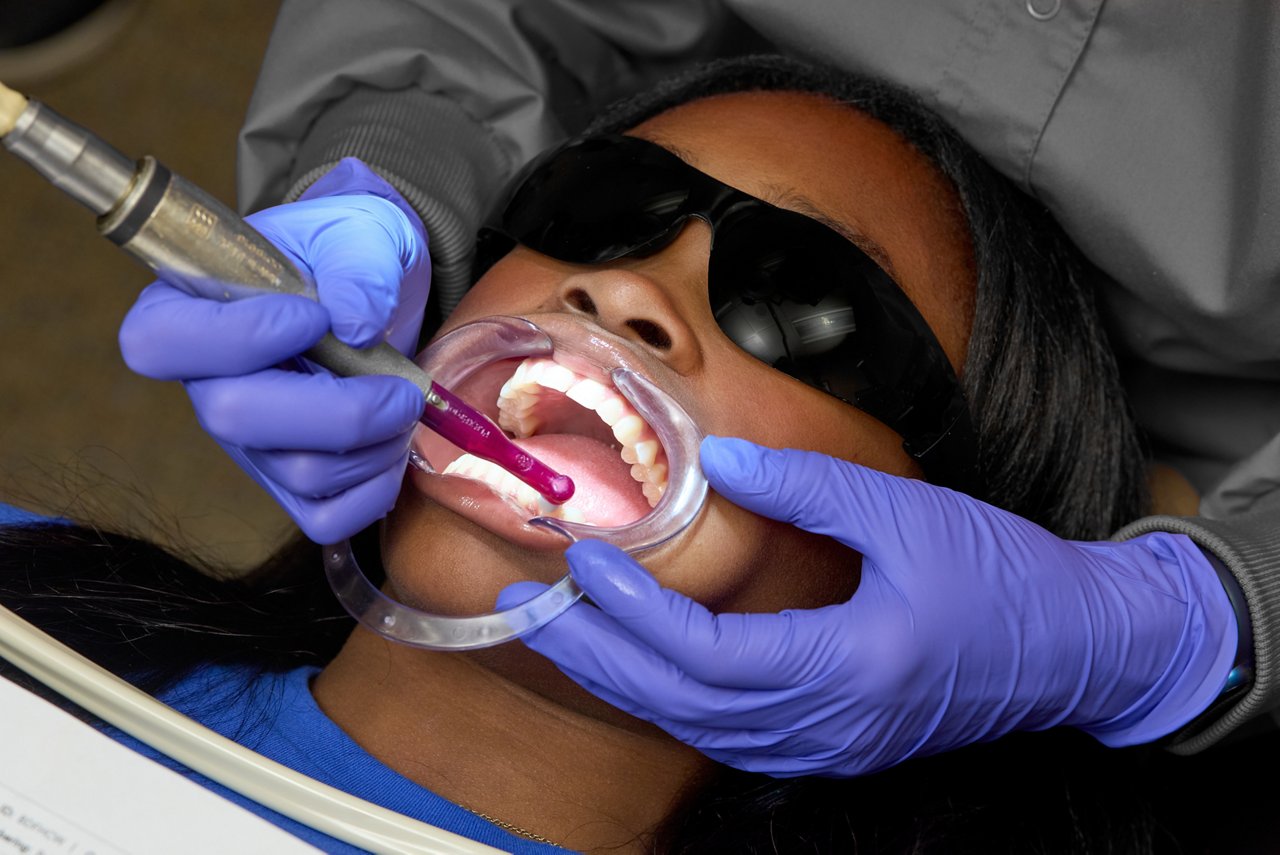

Remove the pellicle using one of the following methods: Mechanical prophy OR Chemical prophy.
  1. Prophy teeth where attachments will be bonded with an oil-free pumice or paste.
  2. Rinse with water and dry teeth thoroughly.

Note: Do not allow teeth to become re-contaminated with saliva before applying the Transbond™ Plus Self Etching Primer.

Apply Unitek™ Etching Gel System or another phosphoric acid etching agent for 15 seconds where attachments will be bonded.

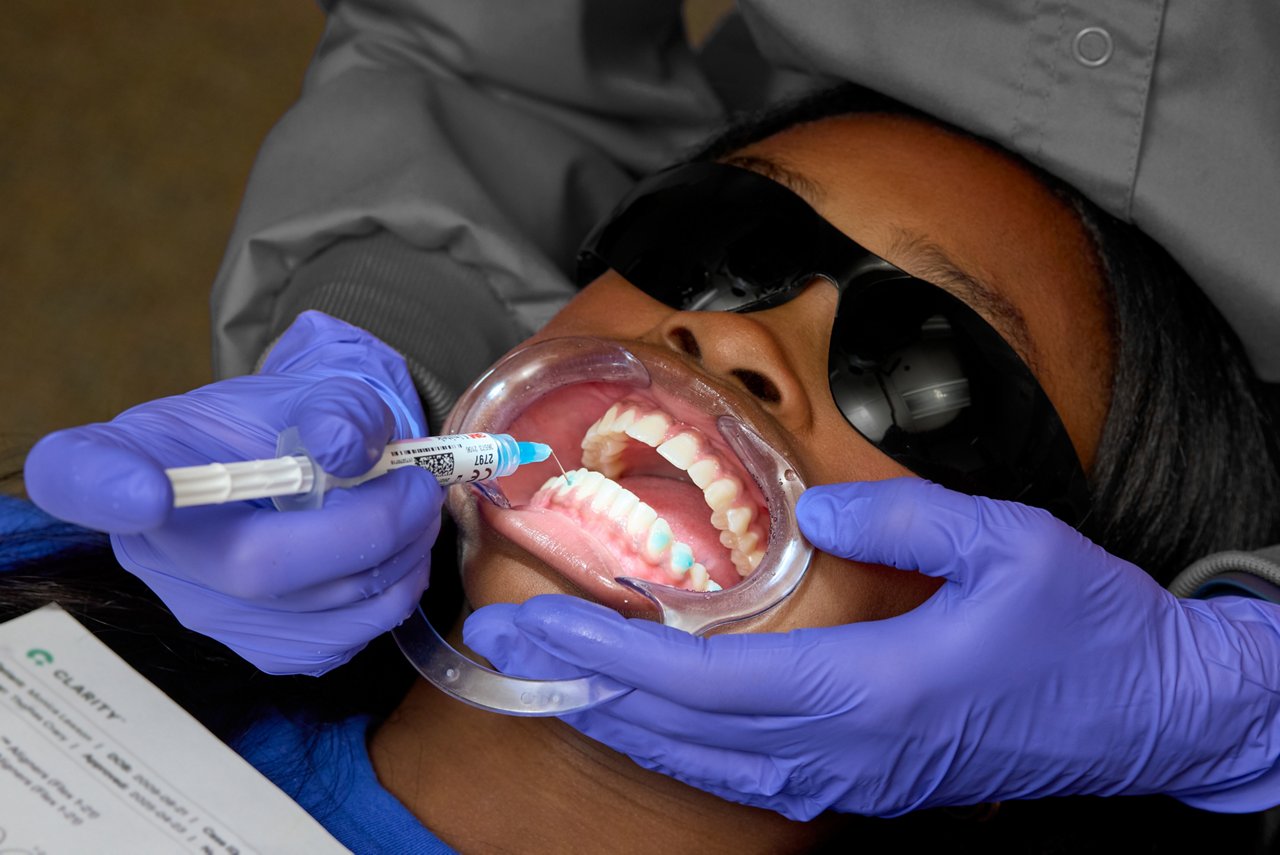

Remove the pellicle using one of the following methods: Mechanical prophy OR Chemical prophy
  1. Apply Unitek™ Etching Gel System or another phosphoric acid etching agent for 15 seconds where attachments will be bonded.
  2. Rinse with water and dry teeth thoroughly.

Note: Do not allow teeth to become re-contaminated with saliva before applying the Transbond™ Plus Self Etching Primer.

Prepare the tooth surface.
  1. After thoroughly mixing the Transbond Self-Etching Primer, rub the saturated tip of the applicator onto the tooth surface where the attachments will be bonded. Continue rubbing bonding agent onto enamel while applying some pressure for a minimum of 3-5 seconds per tooth.
  2. Re-dip applicator in reservoir to saturate tip before applying the bonding agent on the next tooth.
  3. Deliver a gentle air burst for 1-2 seconds to each tooth to evenly disperse bonding agent into a film.

Note: Do NOT cure the bonding agent prior to seating the tray.

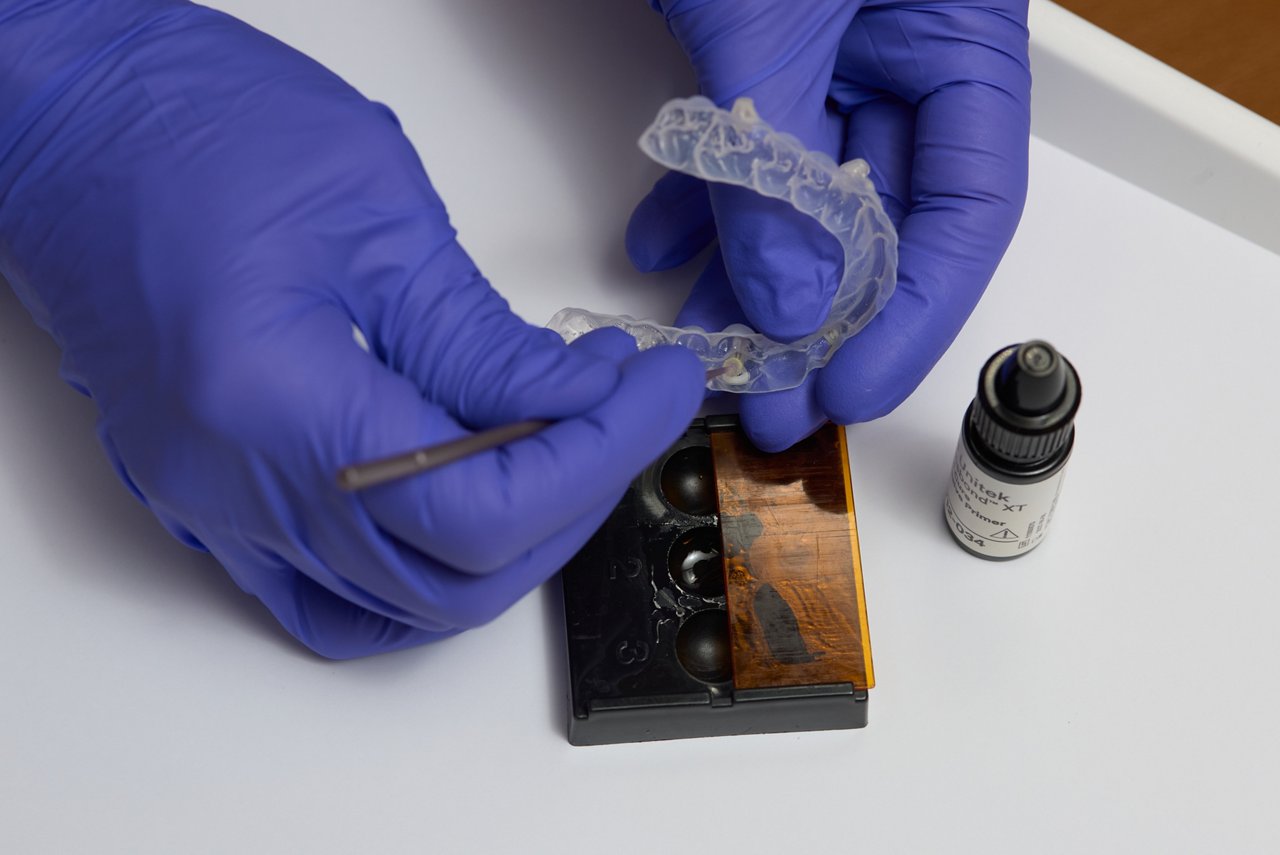

Prepare the attachment surface.
  1. Using a superfine microbrush, apply a bead of the bonding agent to the back of the attachment only.
  2. Avoid allowing the bonding agent to run onto the surrounding surfaces.
  3. Re-dip applicator in reservoir to saturate tip before applying the bonding agent on the next attachment.

Note: Do NOT cure the bonding agent prior to seating the tray.

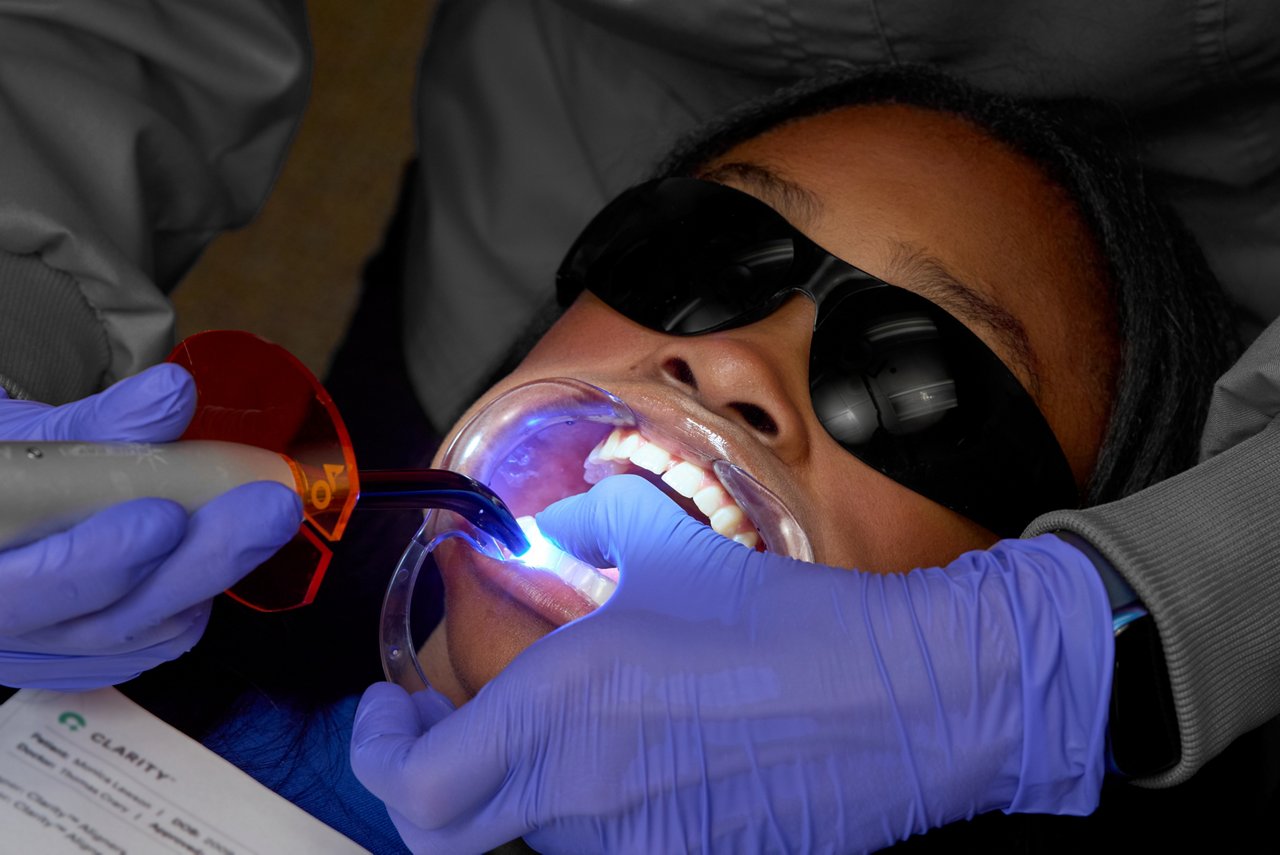

Place tray in patient's mouth and light cure each attachment.
  1. Position tray into patient’s mouth.
  2. Start at most distal attachment on one side of the arch, bond attachments one at a time working towards the midline.
  3. Apply gentle occlusal finger-pressure in a lingual to buccal direction to the support structures of the attachment before turning on the light.
  4. Light cure each attachment for a minimum of 6 seconds using the Ortholux™ Luminous Curing Light or for a minimum of 10 seconds using the Elipar™ Curing Light.

Note: If using a curing light from another manufacturer, reference and follow that manufacturer’s instructions for use related to the proper curing light techniques.

Remove attachment tray by breaking support structures.
  1. Break the support structures away from the attachments by rolling the tray from the lingual to the buccal surface. Do NOT remove tray vertically.
  2. If an attachment remains in the tray, it can be bonded a second time.
Confirm the secure bond of each attachment.
  1. Confirm the secure bond of each attachment.
  2. Check for any residual sprue support structures and remove using a sharp scaler. Avoid applying force that pulls the residual sprue away from the tooth.
  3. Remove any excess material from the tooth if needed using a scaler, polishing disc or bur.

Note: Repeat steps 3-7 for an opposing arch.

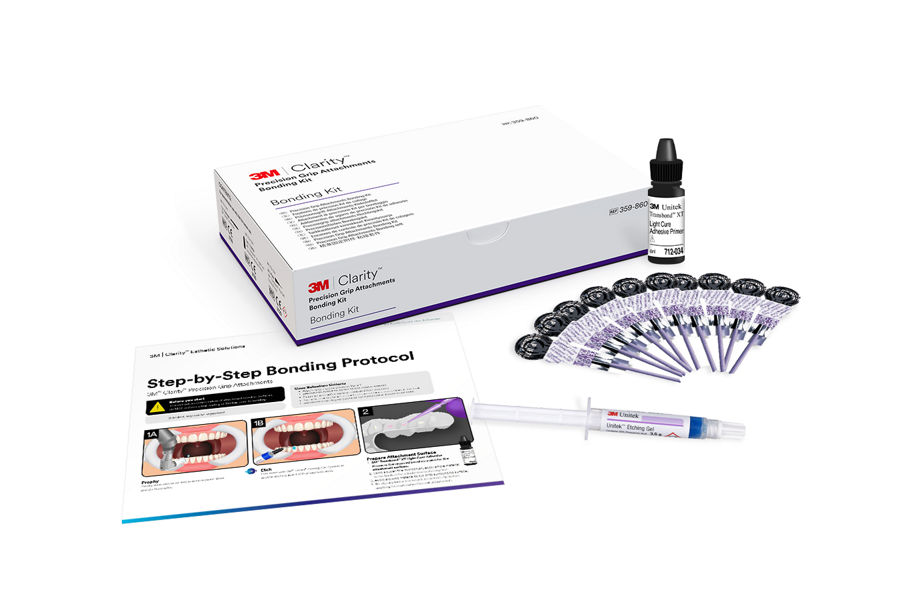

Everything you need for seamless attachment bonding – all in one kit

After submitting your first Clarity™ Aligners case with Clarity™ Precision Grip Attachments, you’ll receive a complimentary bonding kit. Inside, you’ll find:

  • 3M™ Transbond™ XT Light Cure Adhesive Primer
  • 3M™ Unitek™ Etching Gel
  • 3M™ Transbond™ Plus Self Etching Primer
  • Step-by-Step Bonding Protocol
Image of Grip family portfolio

Streamline your workflow with Clarity Portal

Integrated treatment design platform

Leverage our cloud-based treatment design platform to help you simplify treatment planning and empower your pratice with flexibility and control for confident treatment outcomes.

Image of Tx Designer Page with Single View Roots and Precision Grip.
