3M™ Aqua-Pure™ In-Line Water Filtration System AP717
3M and Filtrete branded water filtration products are now Aqua-Pure™ Water Filtration. You will notice continuous branding updates throughout this transition.
About the product
The 3M™ Aqua-Pure™ In-Line Water Filter System AP717 is a single-cartridge water filtration system that is installed on your refrigerator or ice maker’s water line. It reduces chlorine taste and odor, scale* and sediment*, providing effective filtration for up to 1,500 gallons (5,678 liters) at a flow rate of 0.5 gpm. *As tested and verified by manufacturer’s laboratory.
Product details
Clean and simple water filtration.

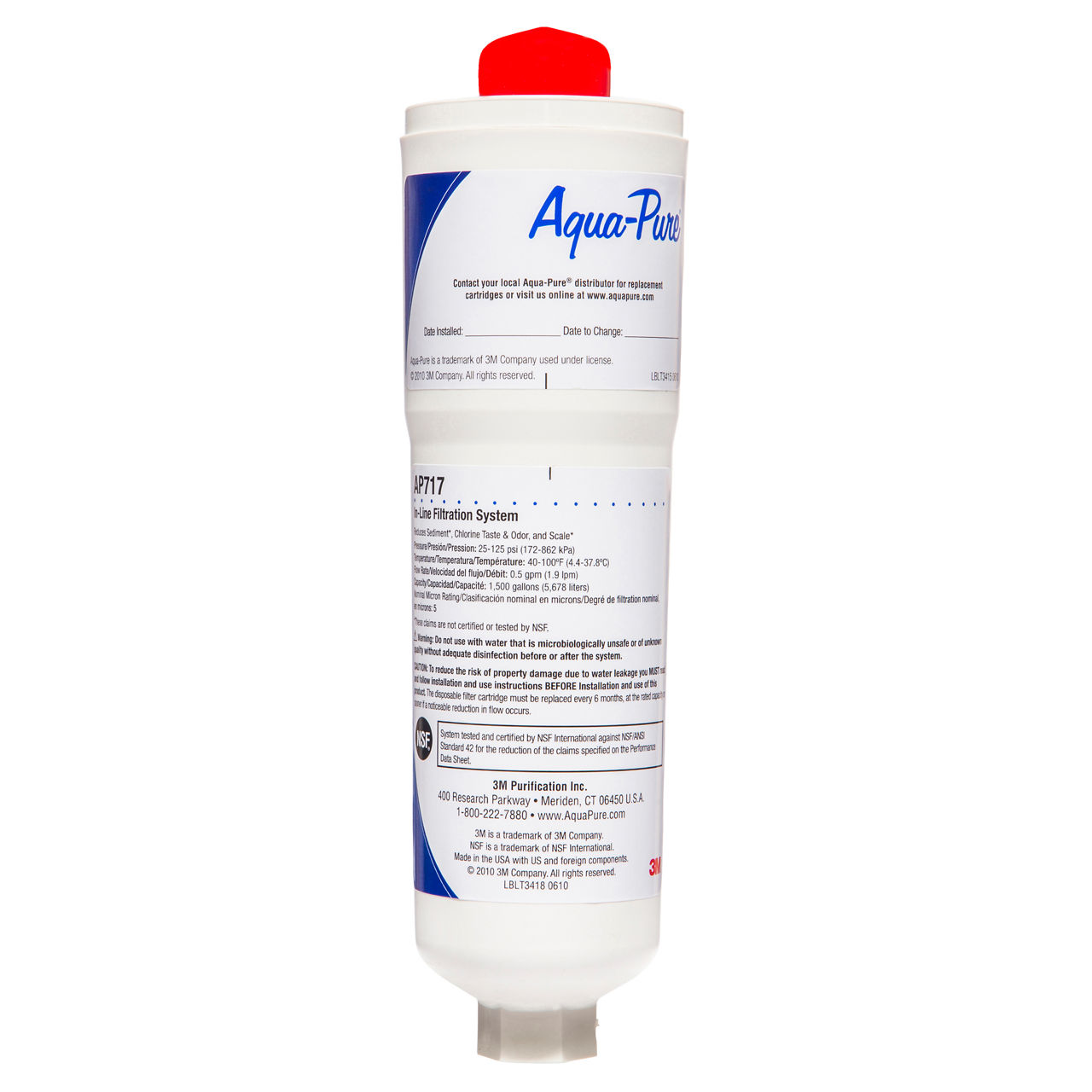

3M™ Aqua-Pure™ In-Line Water Filter System AP717, 5560222
The 3M™ Aqua-Pure™ In-Line Water Filter System AP717 is ideal for refrigerators that do not include a built-in water filtration system or ice maker. It includes a single cartridge that helps reduce sediment*, chlorine taste and odor and scale* from your drinking water and ice while also helping to protect your appliances from corrosion caused by these elements. The system can also be used for drinking fountains, coffee machines and drink dispensers.
The specially formulated activated carbon and progressive porosity media provide effective filtration for up to 1,500 gallons (5,678 liters) at a 0.5 gpm flow rate. Thanks to the sanitary design, filter change-outs do not require contact with the filter media.
*As tested and verified by manufacturer’s laboratory.
Installation

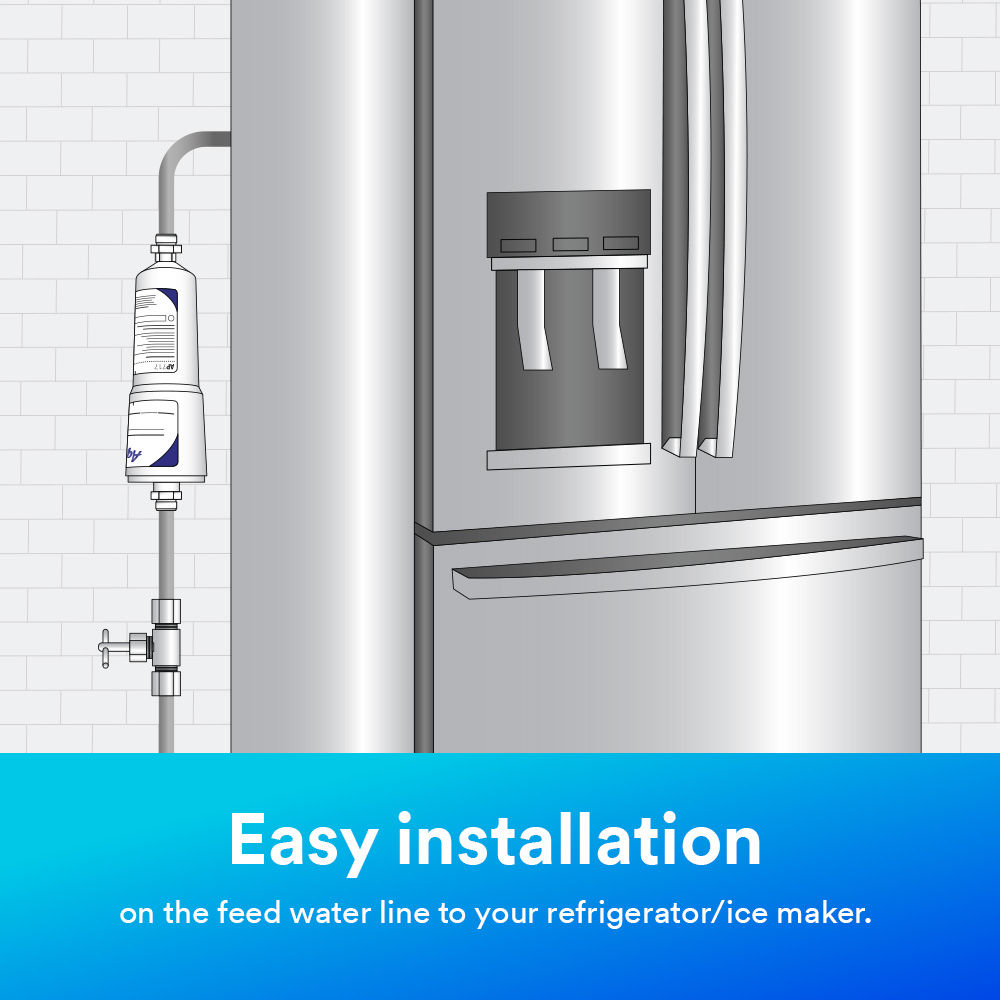

The 3M™ Aqua-Pure™ In-Line Water Filter System AP717 comes complete with all the necessary hardware. All you need is a tube cutter, a wrench, PTFE tape and a knife. Simply follow the easy step-by-step instructions to connect the 3M™ Aqua-Pure™ In-line Water Filtration System to your refrigerator’s incoming cold water line.
The 3M™ Aqua-Pure™ In-Line Water Filter System AP717 for reduce chlorine taste and odour, sediment and scale from your drinking water and ice with a single cartridge. Ideal for refrigerators that don’t have a built-in water filtration system and/or ice maker, these systems can also be used for drinking fountains, coffee machines and drink dispensers. Our systems use specially formulated activated carbon and progressive porosity media for effective filtration down to 5 µm nominal. They provide effective filtration for up to 5,678 l at 2.27 lpm flow rate. The cartridges, using standard ¼” NPT inlet/outlet connections, are sanitary in design and require no contact with the filter media during change-out.
Features include:
Flow rate: 1.9 lpm
25 – 125 psi/172 – 862 kPa/1.7 - 8.6 Bar pressure range
40 – 100 °F/4.4 – 38 °C temperature range
3M™ Aqua-Pure In-Line Water Filter Systems are designed with specially formulated high adsorption activated carbon media. To maximise system performance and efficiency regularly scheduled maintenance is required. This includes replacement of the filter cartridges at the rated capacity and the required interval, or sooner if a reduction in water flow occurs. Filter life is dependent on actual use and the quality of the incoming water. Our Aqua-Pure In-Line Water Filtration Systems work on three areas: chlorine taste and odour, reduction of sediment, as well as reduction of scale build-up, to bring you cleaner, clearer water for drinking, cooking and clear ice cubes. Having clean and clear drinking water in your home is both a pleasure and a reassurance that you're giving your family the best. With a water filtration system from 3M™ you can provide filtered drinking water for every member of your family. From whole home water filtration to drinking water systems, look to 3M™ to help you find the right solution.
Water contact surfaces are FDA CFR-21 compliant.
- Filtration for refrigerators - This system is ideal for refrigerators that do not include a built-in water filtration system
- Better tasting water - This system reduces chlorine taste and odor, providing better tasting water and ice
- Reduces sediment and scale - This system reduces sediment and scale, as tested and verified by the manufacturer’s laboratory

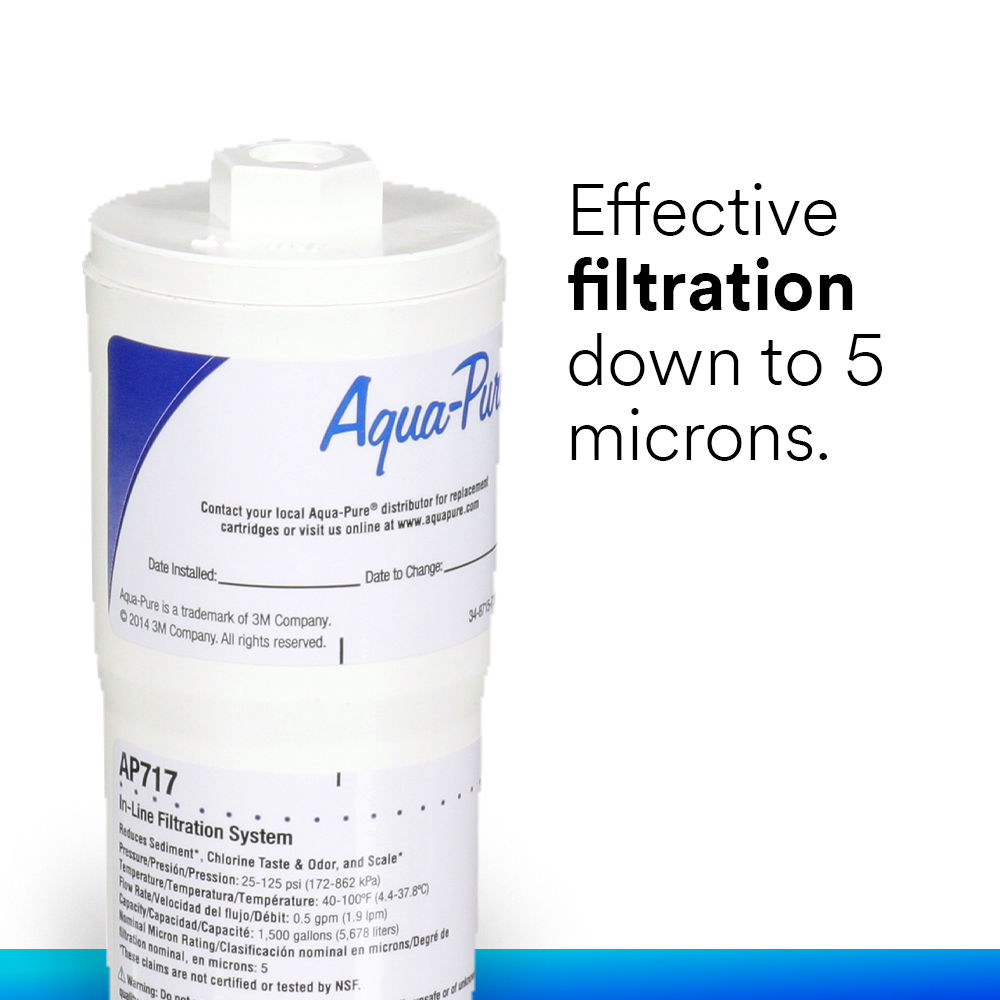

- Effective filtration - The system uses specially formulated activated carbon and progressive porosity media for effective filtration down to 5 micron nomina
- Versatile usage - This system can also be used for drinking fountains, coffee machines and drink dispensers

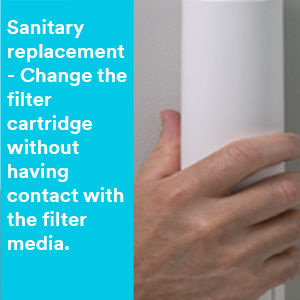

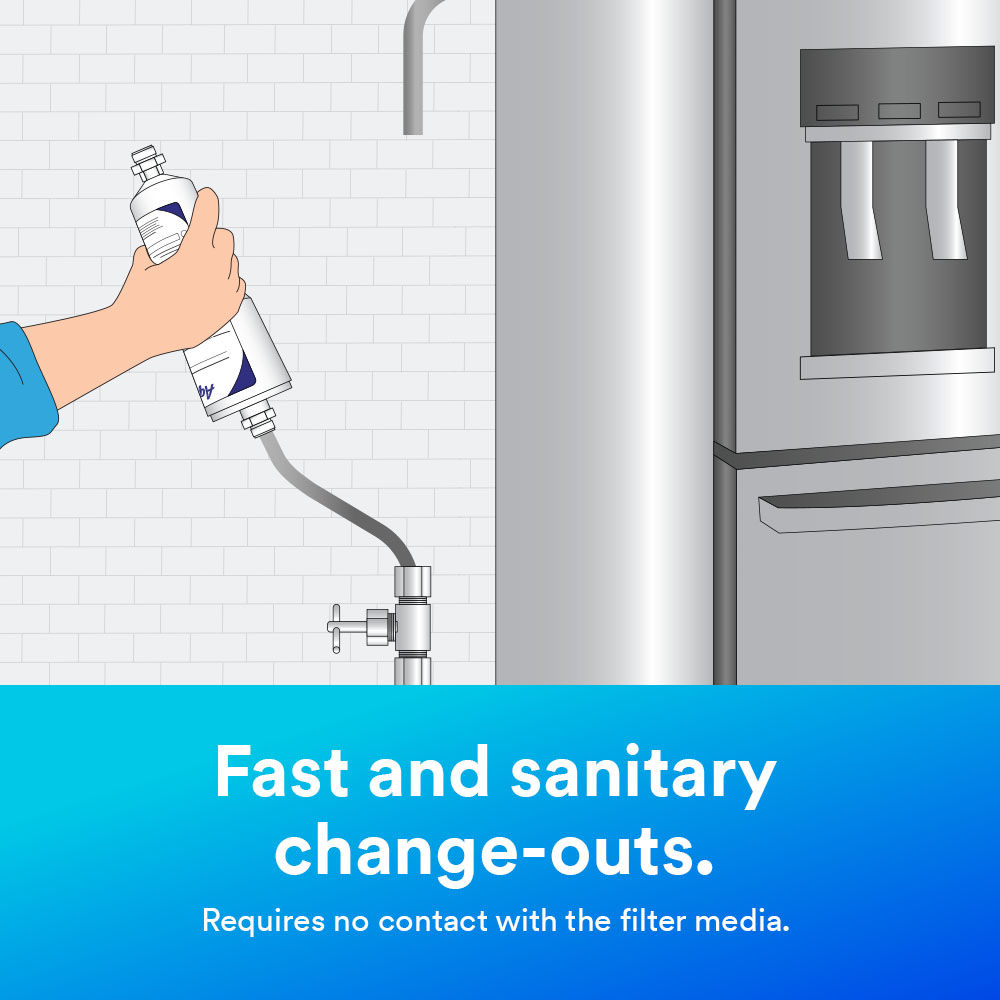

- Sanitary in-line design - The cartridge, using standard 1/4” NPT inlet/outlet connections, is sanitary in design and requires no contact with the filter media during change-out
- Up to 6 months filter life - Change 3M™ Aqua-Pure™ In-Line Water Filter System AP717 at least every 6 months

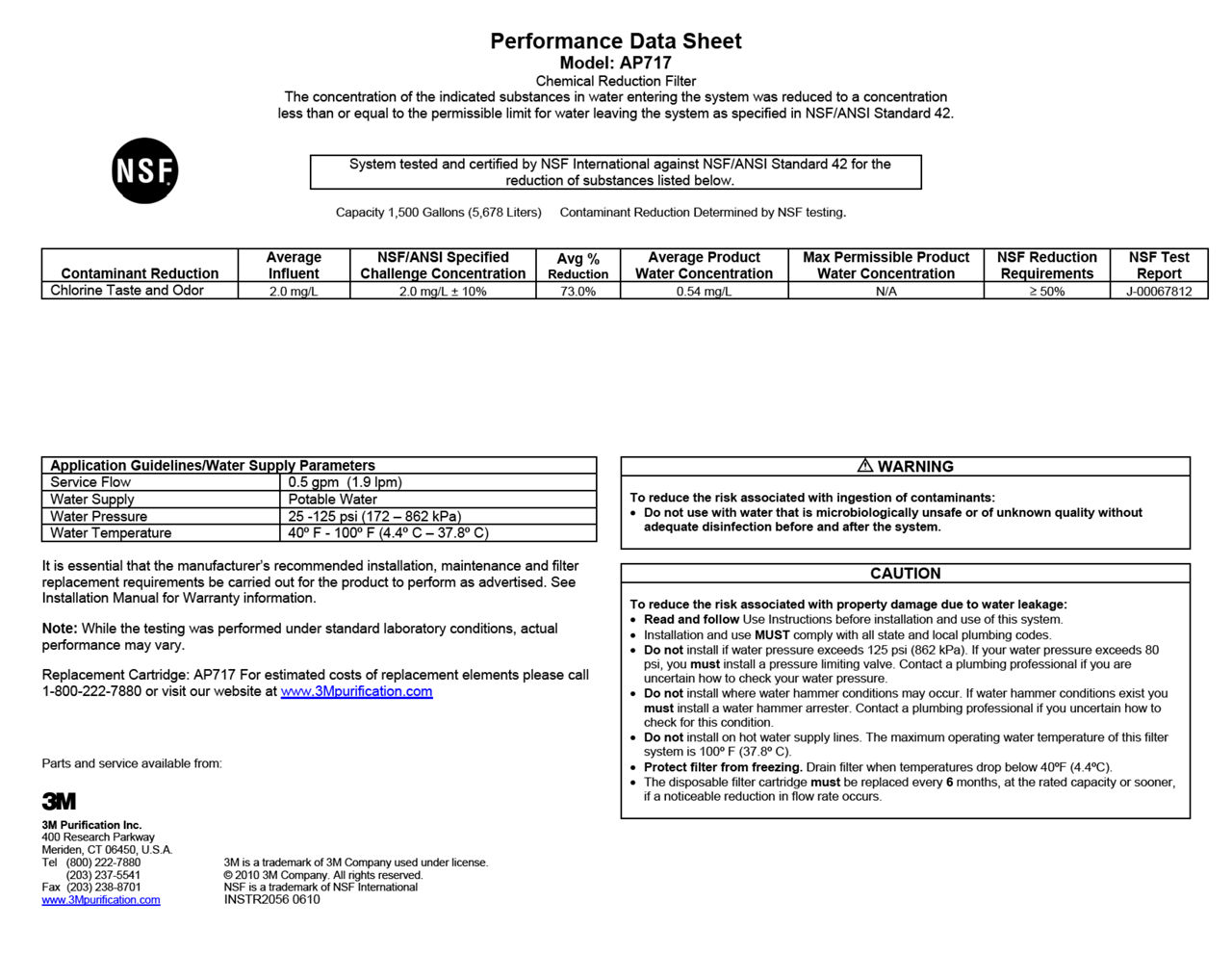

- NSF Standard 42 certified - Tested and certified by one of the world’s most respected independent certification organizations that helps protect the world’s food, water, consumer products and environment
Suggested Applications
- In-line water filtration
- Reduces sediment*, chlorine taste and odor and scale* for clearer and cleaner drinking water or ice *As tested and verified by manufacturer’s laboratory

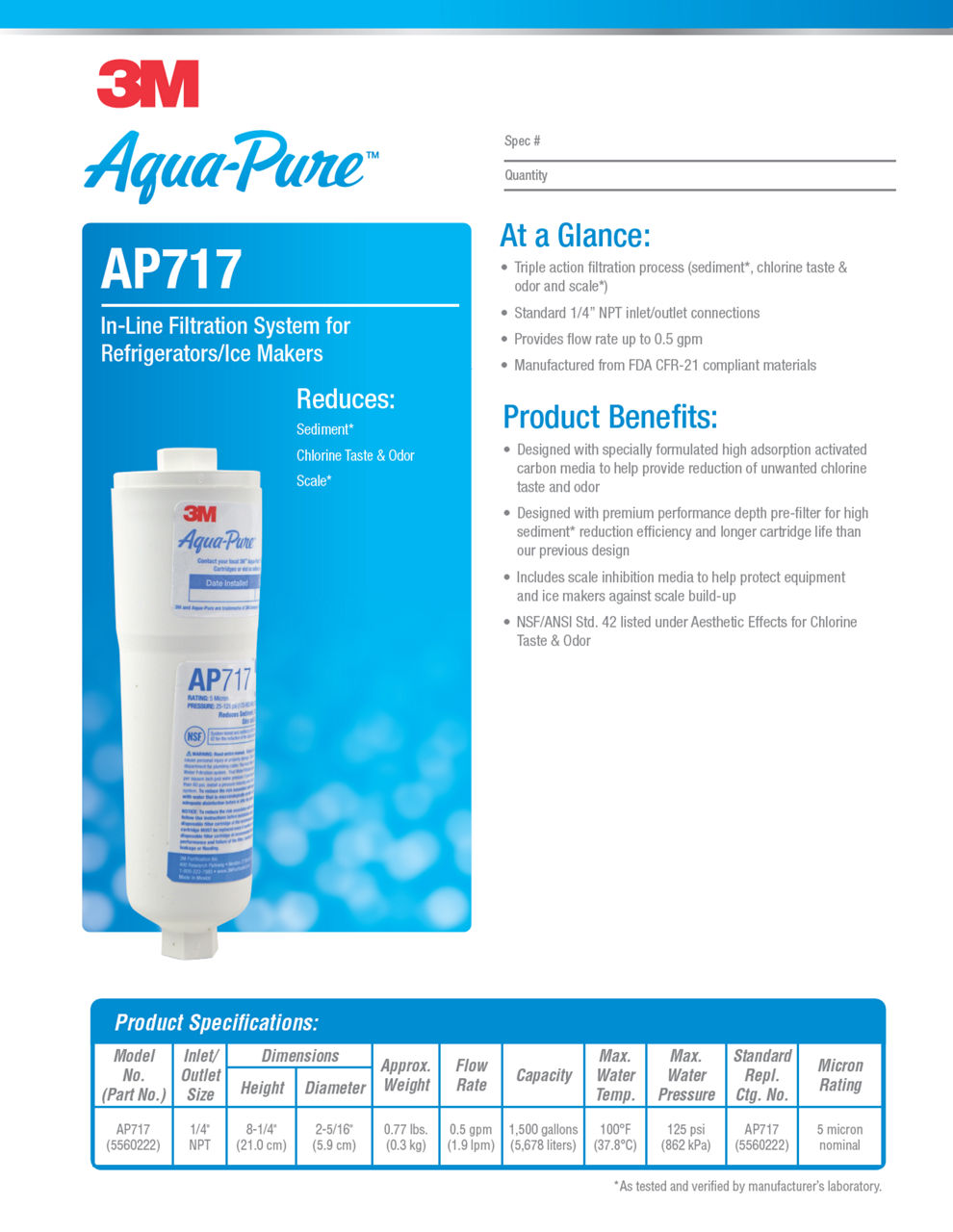

Product specifications
| Industries |
Industries
Consumer water |
| Product Color |
Product Color
White |
| Capacity (Metric) |
Capacity (Metric)
5678 l |
| Micron Rating |
Micron Rating
5 μm |
| Product Series |
Product Series
9000 Series |
| Flow Rate (Metric) |
Flow Rate (Metric)
1.9 l/min |
| Flow Rate (Imperial) |
Flow Rate (Imperial)
0.502 gal/min |
| Brand |
Brand
Aqua-Pure™ |

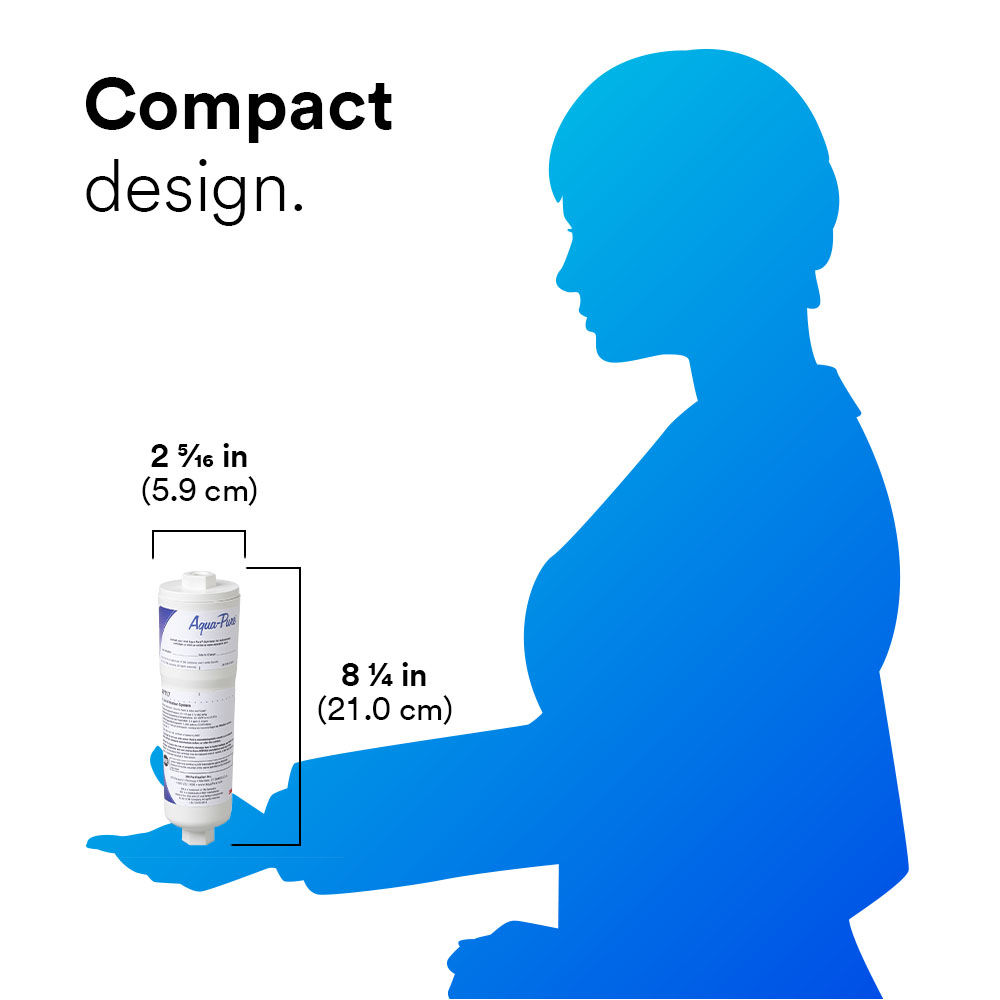

| Overall Height (Imperial) |
Overall Height (Imperial)
8.25 in |
| Overall Diameter (Imperial) |
Overall Diameter (Imperial)
2.44 in |
| Capacity (Imperial) |
Capacity (Imperial)
1500 gal (us) |
| Overall Diameter (Metric) |
Overall Diameter (Metric)
6.2 cm |
| Category name |
Category name
Replacement Water Filter Cartridges |
| Filter Type |
Filter Type
In-line Water Filter |
| Application |
Application
Under sink water filtration |
| Overall Height (Metric) |
Overall Height (Metric)
20.96 cm |
