3M™ DuraPES™ Flat Sheet Membrane

11 Products available

undefined

Hover over image to zoom

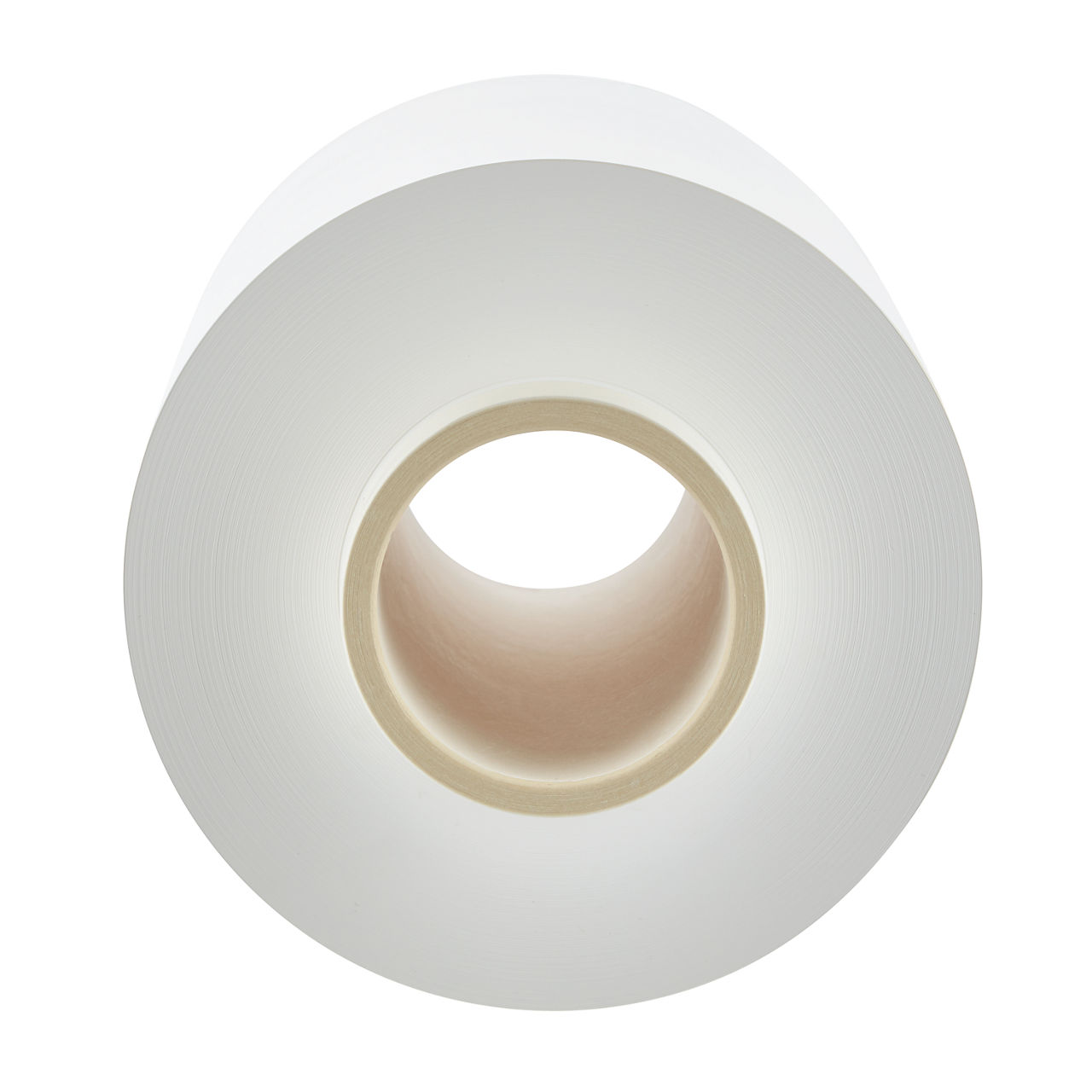

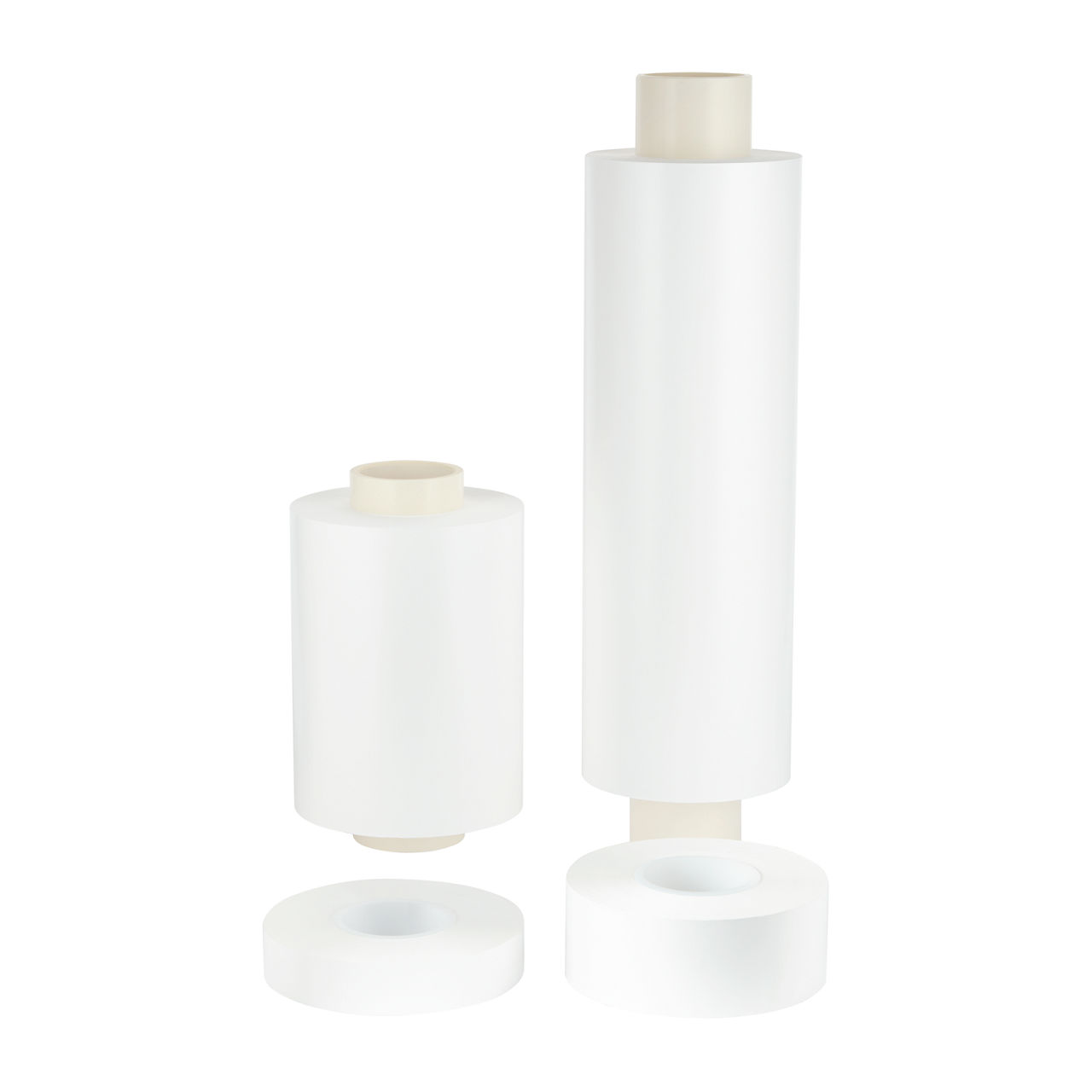

3M™ DuraPES™ Flat Sheet Membrane

About the product

3M™ DuraPES™ Series microporous Polyethersulfone (PES) Filtration Membrane offers high throughput performance because of the asymmetric pore structure. The evenly distributed pores form an asymmetrical structure with excellent depth filtration characteristic along the thickness of the membrane. The highly asymmetric pore structure of our 3M™ DuraPES™ flat sheet membrane offers a high dirt loading capacity, increasing the filtration performance to give higher throughputs and higher flow rates than membranes with symmetrical pore structure.

Product options

1-5 of 11 Products

Select Filters to narrow your product list

Product details

The patented pore structure in the cross-section of the 3M™ DuraPES™ Series counteracts rapid clogging in high dirt load applications. This is largely due to the unique pore structure and polymer blend of sulfonated and unsulfonated PES that allows it to remain permanently hydrophilic.
  • 3M™ DuraPES™ flat sheet membranes made from Polyethersulfone are characterized by the asymmetrical distribution of pores over the cross section
  • 3M™ DuraPES™ membranes are completely synthetic
  • 3M™ DuraPES™ flat sheet membranes possess good thermal welding ability
  • 3M™ DuraPES™ can be processed with common pleating processes
  • 3M™ DuraPES™ flat sheet membranes can be sterilized by steam, ethylene oxide, beta- and gamma-irradiation
  • Members of the 3M™ DuraPES™ flat sheet membrane family, sterilized by ETO, beta- and gamma-irradiation passed the following tests: a) Systemic Injection Test acc. ISO 10993-11, b) Intracutaneous Test acc. ISO 10993-10, c) Cytotoxicity acc. ISO 10993-5, d) Hemolysis acc. ISO 10993-4, e) Skin Sensitization acc. ISO 10993-10, f) Pyrogenic properties acc. ISO 10993-11
  • 3M™ DuraPES™ flat sheet membranes are compliant with EU Food Contact Regulation 1935/2004
  • All grades of 3M™ DuraPES™ membranes achieve log reduction values of at least 7 with specific microorganisms

Product specifications

MicronRating
MicronRating

0.2 μm, 0.6 μm

Product Form
Product Form

Roll

Filter Technology
Filter Technology

Membrane

Micron Rating
Micron Rating

0.2 μm, 0.45 μm

ProductForm
ProductForm

Roll

OverallWidthMetric
OverallWidthMetric

254 mm, 508 mm

Product Series
Product Series

200 iV, 600, 450

categoryName
categoryName

Filtration Media

Brand
Brand

DuraPES™

Overall Width (Metric)
Overall Width (Metric)

37.3 mm, 254 mm, 508 mm

OverallWidthImperial
OverallWidthImperial

10 in, 1.47 in, 20 in

ProductSeries
ProductSeries

201

Category name
Category name

Filtration Media

Trademark2
Trademark2

DuraPES™

Overall Width (Imperial)
Overall Width (Imperial)

10 in, 20 in, 1.47 in

FilterTechnology
FilterTechnology

Membrane

Application
Application

Industrial membrane filtration
