3M™ Aqua-Pure™ In-Line Water Filtration Systems

"We've detected that you're visiting from {0}. Would you like to switch languages for tailored content?"

3M Drinking Water Filtration is now Aqua-Pure™ Water Filtration. You will notice continuous branding updates throughout this transition.

Hover over image to zoom

3M™ Aqua-Pure™ In-Line Water Filtration Systems

About the product

The 3M™ Aqua-Pure™ Whole House Water Filtration System Replacement water filter cartridge for standard diameter housings.

Product options

1- of Products

Select Filters to narrow your product list

Product name	Product ID	Overall Diameter (Imperial)	Overall Diameter (Metric)	Overall Height (Imperial)	Overall Height (Metric)	Micron Rating	Flow Rate (Imperial)	Flow Rate (Metric)	Product Colour	Filter Type	Capacity (Imperial)	Capacity (Metric)	Application	Industries	Product Series	Brand	Category name

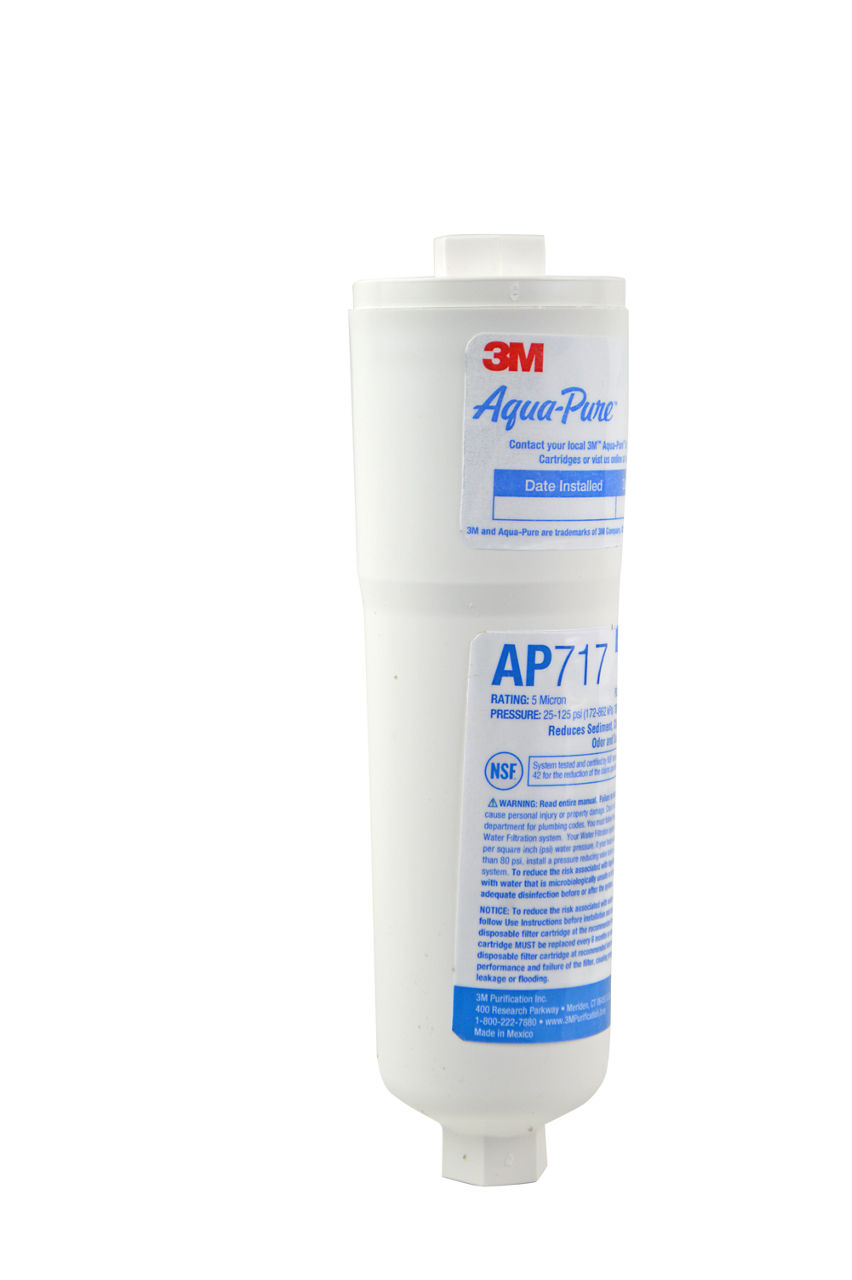

3M™ Aqua-Pure™ In-Line Water Filter System AP717, 5560222, 5 um, 12/Case	Product ID 7100051441	Overall Diameter (Imperial) 2.44 in	Overall Diameter (Metric) 6.2 cm	Overall Height (Imperial) 8.25 in	Overall Height (Metric) 20.96 cm	Micron Rating 5 μm	Flow Rate (Imperial) 0.502 gal/min	Flow Rate (Metric) 1.9 l/min	Product Colour White	Filter Type In-line Water Filter	Capacity (Imperial) 1500 gal (us)	Capacity (Metric) 5678 l	Application Under sink water filtration	Industries Consumer water	Product Series 9000 Series	Brand Aqua-Pure™	Category name Replacement Water Filter Cartridges

Product details

The 3M™ Aqua-Pure™ In-Line Water Filter System AP717 for reduce chlorine taste and odour, sediment and scale from your drinking water and ice with a single cartridge. Ideal for refrigerators that don’t have a built-in water filtration system and/or ice maker, these systems can also be used for drinking fountains, coffee machines and drink dispensers. Our systems use specially formulated activated carbon and progressive porosity media for effective filtration down to 5 µm nominal. They provide effective filtration for up to 5,678 l at 2.27 lpm flow rate. The cartridges, using standard ¼” NPT inlet/outlet connections, are sanitary in design and require no contact with the filter media during change-out.

Features include:

Flow rate: 1.9 lpm

25 – 125 psi/172 – 862 kPa/1.7 - 8.6 Bar pressure range

40 – 100 °F/4.4 – 38 °C temperature range

3M™ Aqua-Pure In-Line Water Filter Systems are designed with specially formulated high adsorption activated carbon media. To maximise system performance and efficiency regularly scheduled maintenance is required. This includes replacement of the filter cartridges at the rated capacity and the required interval, or sooner if a reduction in water flow occurs. Filter life is dependent on actual use and the quality of the incoming water. Our Aqua-Pure In-Line Water Filtration Systems work on three areas: chlorine taste and odour, reduction of sediment, as well as reduction of scale build-up, to bring you cleaner, clearer water for drinking, cooking and clear ice cubes. Having clean and clear drinking water in your home is both a pleasure and a reassurance that you're giving your family the best. With a water filtration system from 3M™ you can provide filtered drinking water for every member of your family. From whole home water filtration to drinking water systems, look to 3M™ to help you find the right solution.

Water contact surfaces are FDA CFR-21 compliant.

Can be used with your ice maker for great tasting water.
Can also be used for coffee machines and drink dispensers.
The AP717 includes proprietary scale and corrosion inhibition media to help protect equipment and ice makers against scale buildup and potentially damaging effects of corrosion.
Installed on the feed water line to the refrigerator/ice maker for great tasting water.
Water contact materials are FDA CFR-21 compliant
System is NSF/ANSI Standard 42 certified

Suggested Applications

Use to reduce sediment, chlorine taste and odour, and scale for clearer and cleaner drinking water, or ice.

Product specifications

Industries	Industries Consumer water
Product Colour	Product Colour White
Capacity (Metric)	Capacity (Metric) 5678 l
Micron Rating	Micron Rating 5 μm
Product Series	Product Series 9000 Series
Flow Rate (Metric)	Flow Rate (Metric) 1.9 l/min
Flow Rate (Imperial)	Flow Rate (Imperial) 0.502 gal/min
Brand	Brand Aqua-Pure™
Overall Height (Imperial)	Overall Height (Imperial) 8.25 in
Overall Diameter (Imperial)	Overall Diameter (Imperial) 2.44 in
Capacity (Imperial)	Capacity (Imperial) 1500 gal (us)
Overall Diameter (Metric)	Overall Diameter (Metric) 6.2 cm
Category name	Category name Replacement Water Filter Cartridges
Filter Type	Filter Type In-line Water Filter
Application	Application Under sink water filtration
Overall Height (Metric)	Overall Height (Metric) 20.96 cm
