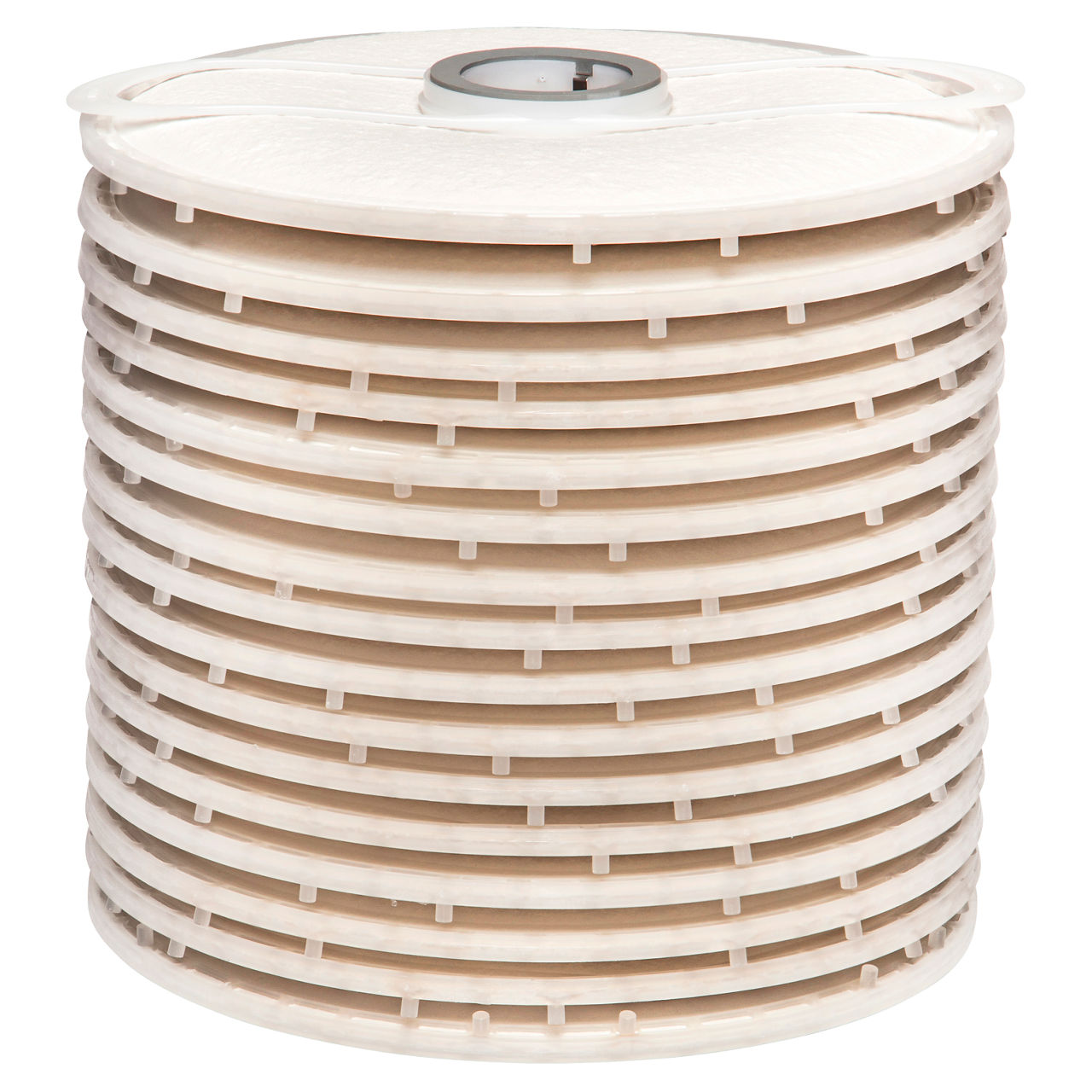

3M™ Zeta Plus™ MHT Series Filter Cartridge
- 1/2
- 2/2
About the product
Our Zeta Plus™ MH Series Filter Cartridges utilize a charge-modified depth filter media. In addition to the mechanical exclusion of particles via depth loading, the filter media adsorbs contaminants too small for mechanical straining alone, and is used in food, beverage and brewing applications.
Product details
We manufacture Zeta Plus™ MH Series Filter Cartridges in 8-, 12-, and 16-inch diameter sizes, providing filtration surface areas from 2.8 ft² to 42.2 ft² per cartridge. With a combination of depth filtration and electrokinetic adsorption, our cartridge provides efficient haze and particle reduction. Larger particulate and hazes are mechanically entrapped in the depth of the filter, while negatively charged particles, such as bacteria, yeast, and submicronic hazes are adsorbed to the positively charged Zeta Plus MH Series filter.
Cartridge Construction
The Zeta Plus™ MH series filter design consists of two distinct layers, or “zones” of filter media with the upstream zone more open than the downstream zone. This structure enhances the contaminant holding capacity of the filter, since larger particles are trapped in the upstream zone of the filter and smaller particles are trapped in the downstream zone.
- Filter cartridges for clarification and prefiltration in food and beverage, and cosmetic applications.
- Depth filtration and electrokinetic adsorption provide efficient haze and particle reduction.
- Dual Zone depth filter enhances the contaminant holding capacity of the filter.
- All Components are FDA 21CFR listed for food contact.
Suggested Applications
The Zeta Plus™ MH series filter cartridge is used for clarification and prefiltration in food and beverage, cosmetic applications. These include aqueous, alcoholic, proteinaceous, and acidic solutions. Applications include:
- Beer
- Wine Spirits
- Syrups
- Edible Oils
- Flavour Concentrates
- High Fructose Corn Syrup
Product specifications
| Industries |
Industries
Breweries,Food & beverage manufacturing,Manufacturing,Soft drink manufacturing,Wineries |
| Brand |
Brand
Zeta Plus™ |
| Overall Height (Imperial) |
Overall Height (Imperial)
10.75 in |
| Overall Diameter (Imperial) |
Overall Diameter (Imperial)
16 in |
| OverallDiameterMetric |
OverallDiameterMetric
40.64 cm |
| End Modification |
End Modification
Double Open End |
| Filter Type |
Filter Type
Depth |
| Grade |
Grade
60MH05 |
| Category name |
Category name
Cellulose Depth Filter Cartridges |
| FilterTechnology |
FilterTechnology
Adsorbent |
| Overall Height (Metric) |
Overall Height (Metric)
27.3 cm |
| Reduction Claims |
Reduction Claims
Non Pertinent |
