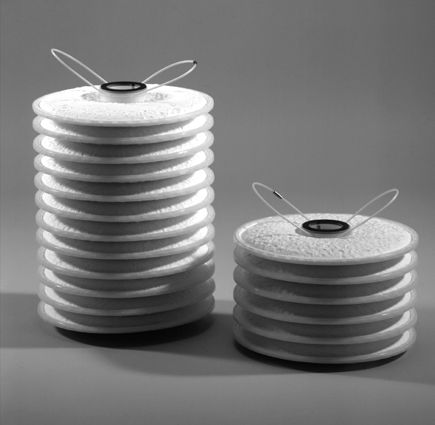

Cartouche filtrante 3M™ Zeta Plus™ Série U & UW
La division Purification et Filtration de Solventum fait désormais partie de Thermo Fisher Scientific. Le segment pour la Filtration de l'Eau Potable reste sous la responsabilité de Solventum. Pour plus d'informations, cliquez ici.
À propos du produit
Our 3M™ Zeta Plus™ U & UW Series filters for the power generation industry are offered in two formulations. The U formulation is recommended for use with oils contaminated mainly with carbon particles, and the UW formulation is specifically formulated for use with oils contaminated with both carbon particles and moisture.
Détails du produit
As oil specifications get tighter, finer filtration is required to meet those demands. The 10U formulation was developed to help reduce smaller contaminants such as fine carbon particulate. Water contaminates the dielectric oil either from the atmosphere or breakdown of the oil itself. Water contamination is usually accompanied by particulate contamination, which then increases both the filtration and water reduction workload. 3M™ Zeta Plus™ U & UW series formulations help address both problems. Automatic Shut-off upon Saturation
The construction of 3M™ Zeta Plus™ Series 05UW and 10UW cartridges allow it to plug on saturation with water, effectively shutting off flow. This feature is important for two reasons. First, it provides a clearly defined end-point to filter life. Second, the automatic shut-off helps prevent recontamination of the filtrate with water. User-Friendly Design
Optional cartridge reduction baskets are available for manually or mechanically installing and removing cartridges.
- Products developed specifically for the filtration of Insulation oil used in power generation.
- Tight 10U & 10UW grades provide reduction of very fine particles.
- Water absorbent formulation provides superior water reduction capabilities (UW Grade).
Spécifications du produit
| Type de filtre |
Type de filtre
Profondeur |
| Marque |
Marque
Zeta Plus™ |
| Série du produit |
Série du produit
U |
| Grain |
Grain
05U |
| Diamètre total (en pouces) |
Diamètre total (en pouces)
12 in |
| Hauteur totale (impérial) |
Hauteur totale (impérial)
7.72 in |
| Diamètre global (métrique) |
Diamètre global (métrique)
30.48 cm |
| Hauteur totale (métrique) |
Hauteur totale (métrique)
19.6 cm |
| Réclamation de réduction |
Réclamation de réduction
Non Pertinent |
| Technologie du filtre |
Technologie du filtre
Adsorbant |
| Nom de la catégorie |
Nom de la catégorie
Cartouches de filtration en profondeur en cellulose |
| Modification finale |
Modification finale
Double Open End |
