  1. 3M™ High Flow Series Filter Housing

3M™ High Flow Series Filter Housing, FC 01HFB2H 316L NBR ATEX, C0000006,1 per case

La division Purification et Filtration de Solventum fait désormais partie de Thermo Fisher Scientific. Le segment pour la Filtration de l'Eau Potable reste sous la responsabilité de Solventum. Pour plus d'informations, cliquez icis’ouvre dans un nouvel onglet.

undefined

Survolez l'image pour zoomer

  • 1/2
  • 2/2
3M™ High Flow Series Filter Housing, FC 01HFB2H 316L NBR ATEX, C0000006,1 per case

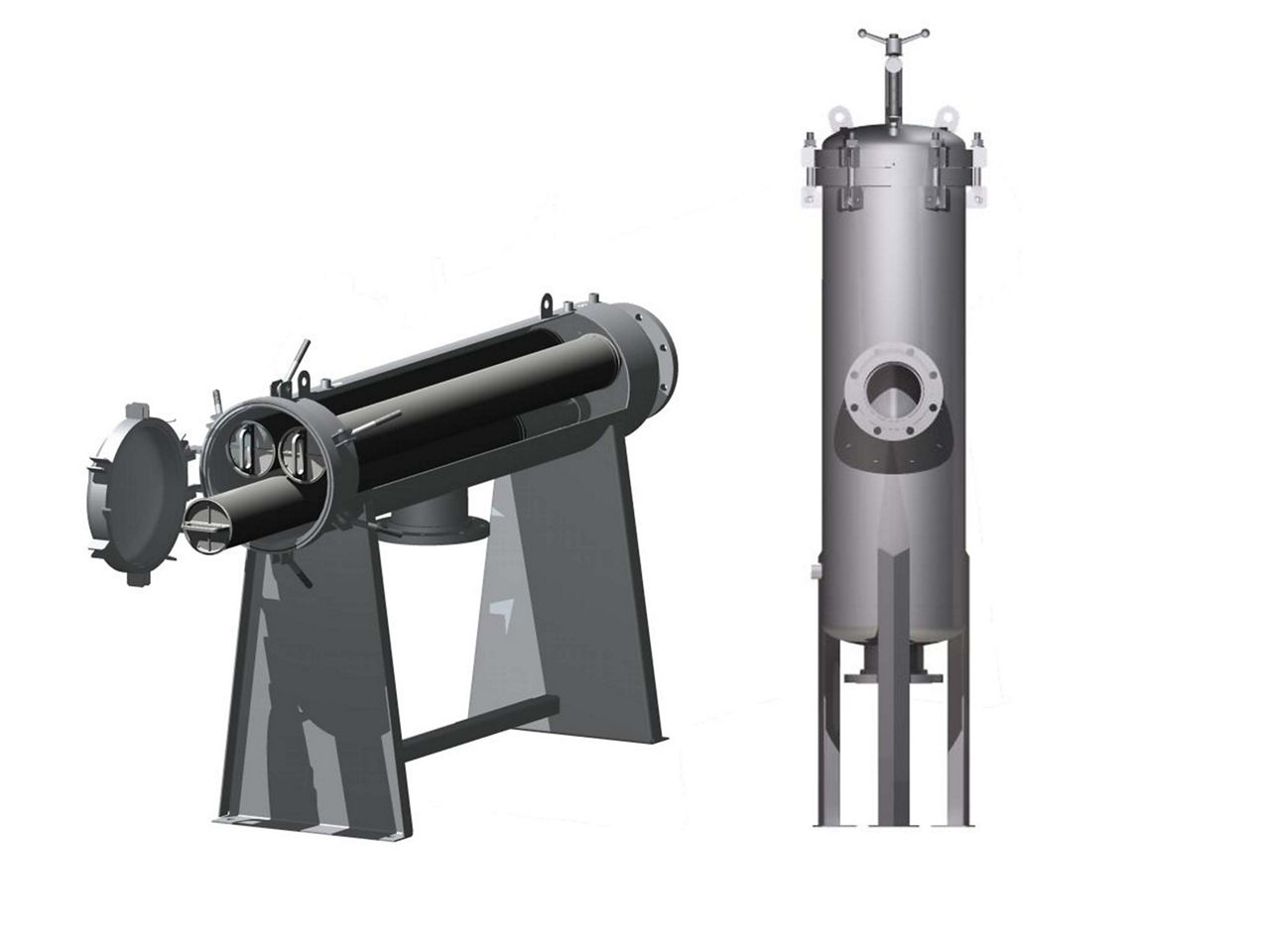

3M™ High Flow Filter System Family Shot #5

1-2 de 2

À propos du produit

3M™ High Flow Series Filter Housings are specifically designed to deliver all of the filtration benefits in a compact footprint. These housings are available in standard designs, as well as customizable configurations to suit your specific needs. All standard 3M high flow series filter housings are designed, manufactured, tested, and code stamped in accordance with ASME Section VIII, Division 1.

Détails

Voir d'autres options de produit
  • Nom de la catégorie : Corps de filtre

Détails du produit

Pressure Equipment Directive 2014/68/EU: 3M High Flow housings are fully compliant with and built to PED 2014/68/EU Article 4.3 “Sound Engineering Practice” as standard. ATEX Directive 2014/34/EU The 3M High Flow Coreline housings are ATEX approved as standard for use in ATEX condition II 2 GD c IIC/IIIC. Marking and documentation The housings are clearly marked and delivered with a EN10204 Certificate of Conformity 2.2. The user of these housings must ensure that they are used in compliance with the requirements of these PED and ATEX directives at all times, and in accordance with the instruction manual supplied. Food Contact Directive (EC) 1935/2004 The housings are constructed from 316 and 316L stainless steel (wetted parts in contact) and delivered with O-rings that are compliant to FDA (there are no other non-316 parts in contact). Design In addition to the standard Coreline housing range described here, 3M High Flow System Housings can be built upon request to a wide range of specifications and design and construction standards. These routinely include PED Category IV and for use with Hazardous (Group 1) liquids and Gas/Vapour. Design and constructions codes can include (but are not limited to) EN13445, AD Merkblatter, ASME Div VIII & U Stamp and CODAP. Materials can include in addition to 316 (but not limited to) 304 and Uranus B6 Super Duplex steels
•3M High Flow Series Filter Housings are 33% to 50% smaller than competitively sized housings for a given flow rate
•Single Cartridge Housings available for 10 in, 40 in and 60 in High Flow Cartridges
•Robust cartridge centre-post design - Eliminates bulky support plates providing easy access to housing internals
•Hinged cover for easy filter cartridge change-outs.
•ASME Code design meets high quality and performance standards.

Spécifications du produit

Nom de la catégorie
Nom de la catégorie

Corps de filtre
