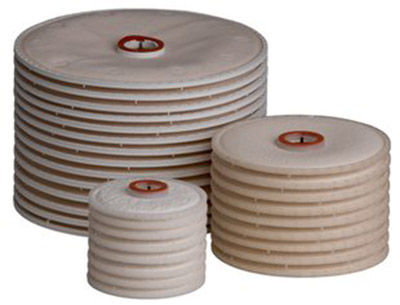

3M™ Zeta Plus™ C Series Filter Cartridge

Solventum'un Arıtma ve Filtrasyon İş Birimi artık Thermo Fisher Scientific'in bir parçasıdır. İçme Suyu Filtrasyonu Solventum bünyesinde kalmaya devam edecektir. Daha fazla bilgi için lütfen burayı ziyaret edin.

Yakınlaştırmak İçin Görselin Üzerinde Gezinin

3M™ Zeta Plus™ C Series Filter Cartridge

Ürün Hakkında

We developed 3M™ Zeta Plus™ C Series Filters to provide optimal clarification of chemicals and food & beverage fluids. This advanced, cellulose-based depth filtration filter medium is composed of inorganic filter aid, cellulose and a resin system that imparts a positive charge to the filter matrix, particularly in fluids such as high quality resins, chemicals and distilled spirits.

Ürün Seçenekleri

1- ile ilgili Ürünler

Ürün Listenizi Daraltmak İçin Filtreleri Seçin

Ürün Adı Ürün Kimliği Toplam Çap (İngiliz ölçü birimi) Tam Çap (Metrik) Ürün Serisi Marka Kategori adı
3M™ Zeta Plus™ C Series Filter Cartridge Z12DD10C, 2/Case
3M™ Zeta Plus™ C Series Filter Cartridge Z12DD10C, 2/Case

Ürün Kimliği

7000075253

Toplam Çap (İngiliz ölçü birimi)

12 in

Tam Çap (Metrik)

30.48 cm

Ürün Serisi

C

Marka

Zeta Plus™

Kategori adı

Selüloz Derinlik Filtreleri

Ürün Detayları

Our family of 3M™ Zeta Plus™ C Series Filters are composed of advanced cellulose-based depth filtration media, designed to retain contaminants by both mechanical entrapment and electrokinetic adsorption. 3M™ Zeta Plus™ filter media itself is composed of high surface area filter aids embedded in a cellulose fibre matrix. During the manufacturing process, we chemically bind positively charged molecules to the filter matrix to permanently form an interconnected filtration structure with positively charged electrokinetic capture sites. The resulting porous depth filter is a complex network of charge-enhanced flow channels capable of removing bacteria, particulate, cellular debris and submicronic contaminants to a level which mechanical screening alone cannot achieve. Our cartridges are constructed from individual cells of 3M™ Zeta Plus™ C series filter medium assembled together with polypropylene ring seals under predetermined compression and unitized by three, 316 stainless steel bands. Each cell is constructed using polypropylene moulded edge seals and separators for high performance. Various gasket materials are available depending upon application. 3M™ Zeta Plus™ C series filter media is available in a broad range of grades to meet coarse, medium or fine clarification applications. Optimum flow rates vary by application, but in general, lower flux rates often result in longer service life, greater throughputs and superior system economics. The lenticular depth filters used in Zeta Plus systems are fabricated from two circular discs of filter media bonded along the outside rim and separated by a filtrate outlet tube at the centre, which gives the disc its characteristic lens shape. Each 3M™ Zeta Plus™ disc can then stacked along a common intake manifold. The discs are encapsulated in a cylindrical housing to complete the cartridge assembly.
  • Filter media retains contaminants by mechanical entrapment and electrokinetic adsorption.
  • High contaminant holding capacity provides economical filtration and reliable particle reduction.
  • Lenticular filter cartridge design installs in a totally enclosed sanitary filter vessel, greatly limiting any leakage or exposure common with a filter press.
  • Self-contained single use cartridge module reduces labour time for changes.

Önerilen Uygulamalar

  • Use for optimal clarification of pharmaceutical fluids

Ürün Özellikleri

Kategori adı
Kategori adı

Selüloz Derinlik Filtreleri

Toplam Çap (İngiliz ölçü birimi)
Toplam Çap (İngiliz ölçü birimi)

12 in

Tam Çap (Metrik)
Tam Çap (Metrik)

30.48 cm

Ürün Serisi
Ürün Serisi

C

Marka
Marka

Zeta Plus™
