3M™ Betapure™ AU Series Filter Cartridge AU30B11NG, 30 in, 20 um ABS,DOE, Polyethylene with Polyolefin media only, 15/Case

Solventum’s Purification and Filtration Business is now a part of Thermo Fisher Scientific. Drinking Water Filtration remains with Solventum. For more information, please visit here.

Hover over image to zoom

Hover over image to zoom

3M™ Betapure™ AU Series Filter Cartridge AU30B11NG, 30 in, 20 um ABS,DOE, Polyethylene with Polyolefin media only, 15/Case
Betafine™, Betapue™ & LifeASSURE™ Series Capsules, low res photo

About the product

We set a high standard of filtration with our Betapure™ AU Series Filter Capsules. This capsule is a polypropylene encapsulated filter that does not require a separate filter vessel. Available in a wide range of configuration, including sanitary flange and hose barb connections, the 2.5" and 5" capsules are ideal for small batch and filter test applications.

Details

View other product options
  • Industries : Manufacturing,Microelectronics
  • Filter Technology : Non-woven
  • Micron Rating : 20 μm
  • OverallDiameterImperial : 2.5 in
  • OverallWidthMetric : 6.35 cm
  • Product Series : AU
  • Brand : Betapure™
  • OverallLengthMetric : 76.2 cm
  • Overall Length (Imperial) : 30 in
  • OverallWidthImperial : 2.5 in
  • Overall Diameter (Metric) : 6.35 cm
  • End Modification : No End Modification
  • Category name : Capsule Filters
  • Filter Type : Depth
  • Application : Anode/cathode/electrolytes filtration,Chemical Mechanical Planarization (CMP),Hard discs

Product details

Our wide range of filter porosities allows you to precisely tailor performance characteristics and achieve optimal filtration economy by enabling defined reduction cut-off points by particle size. We developed Betapure™ AU series filter capsules using state-of-the-art technology to produce a clean, rigid, filter structure that generates reproducible effluent consistency. The filter matrix is constructed using long bicomponent fibers, each fiber having an inner core and an outer sheath. Betapure AU series filters are available in two bicomponent fiber structures, polypropylene/polyethylene or polyester/co-polyester, to provide the greatest range of compatibility for your particular process. In manufacturing the Betapure™ AU Series Filter Capsule we combine stringent material quality assurance standards, exacting in-process controls, along with extensive final product testing and verification. The results are products that provide consistent filtration from lot-to-lot, filter-to-filter. The bicomponent fibers of the filter matrix are thermally bonded with a high degree of fiber-to-fiber bonding. This provides a rigid structure that eliminates the need for a core support, along with any possibility of media migration.
  • Rigid structure provides consistent and reproducible contaminant reduction
  • Excellent reduction of deformable contaminants for consistent effluent
  • Ideal for small batch and filter test applications
  • Rigid structure reduces cartridge by-pass and unloading for consistent filtration throughout product lifecycle
  • Low pressure drop provides long service life while using smaller filter housings

Suggested Applications

  • Use to provide precise contaminant reduction, consistent effluent quality and superior on-stream service life for a wide-range of applications

Product specifications

Industries
Industries

Manufacturing,Microelectronics

Filter Technology
Filter Technology

Non-woven

Micron Rating
Micron Rating

20 μm

OverallDiameterImperial
OverallDiameterImperial

2.5 in

OverallWidthMetric
OverallWidthMetric

6.35 cm

Product Series
Product Series

AU

Brand
Brand

Betapure™

OverallLengthMetric
OverallLengthMetric

76.2 cm

Overall Length (Imperial)
Overall Length (Imperial)

30 in

OverallWidthImperial
OverallWidthImperial

2.5 in

Overall Diameter (Metric)
Overall Diameter (Metric)

6.35 cm

End Modification
End Modification

No End Modification

Category name
Category name

Capsule Filters

Filter Type
Filter Type

Depth

Application
Application

Anode/cathode/electrolytes filtration,Chemical Mechanical Planarization (CMP),Hard discs

Resources

1-12 of 2 Resources

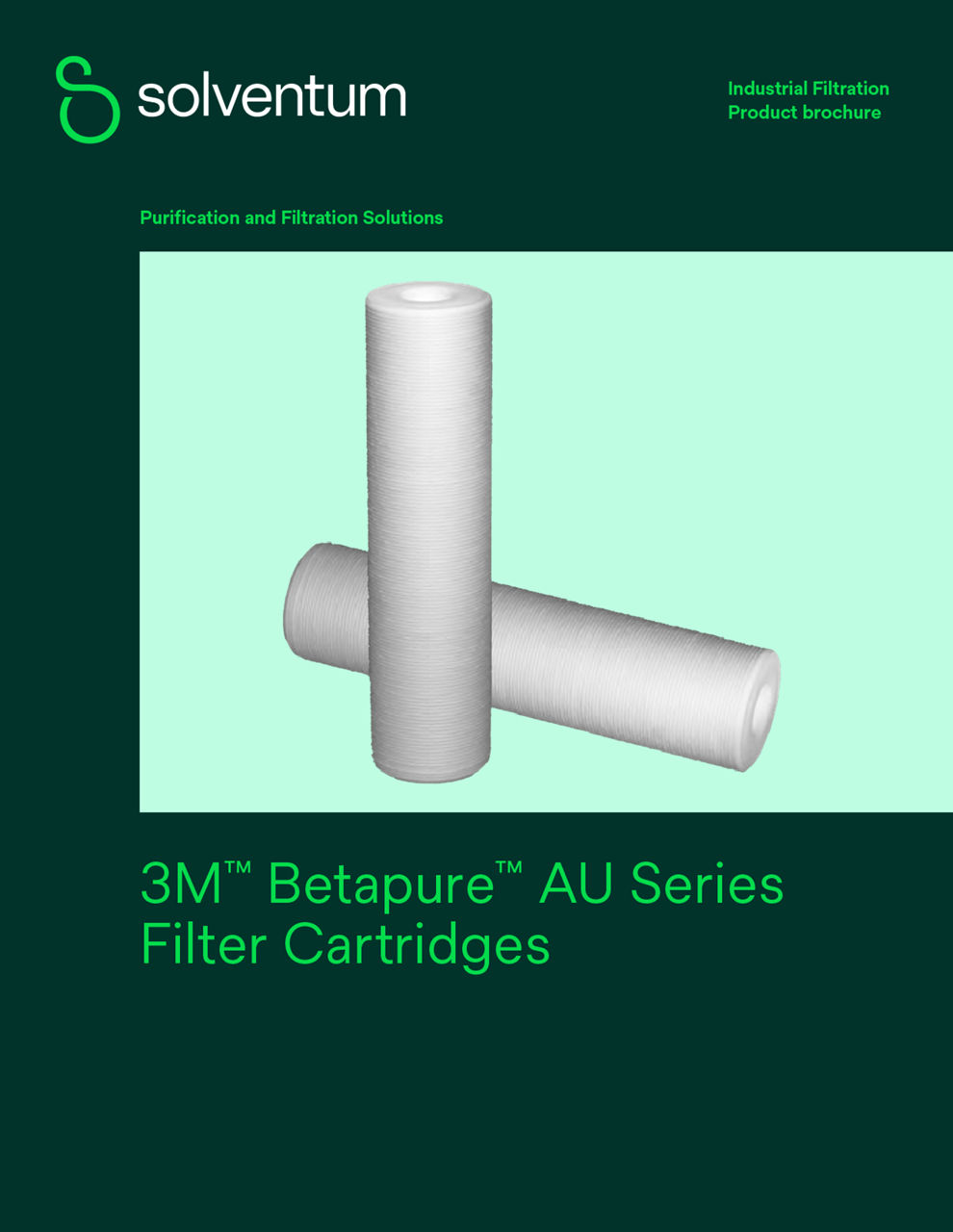

3M™ Betapure™ AU Series Filter Cartridges

3M™ Betapure™ AU Series Filter Cartridges

Betapure™ AU series filter cartridges and capsules set the standard for filtration performance. Offering more grades with absolute reduction ratings than competitive filters, the controlled pore size of the Betapure AU series filter matrix allow for absolute distinction between cartridge grades to provide the most accurate and consistent filtration. The Betapure AU series filter provides: Precise Contaminant Reduction, Consistent Effluent Quality, Superior On-stream Service Life.

View Document

3M SPSD Industrial Segment Brochure USAC_3-30.indd

3M SPSD Industrial Segment Brochure USAC_3-30.indd

USAC Version for 3M SPSD Industrial Segment Filtration and Separation Brochure

View Document
