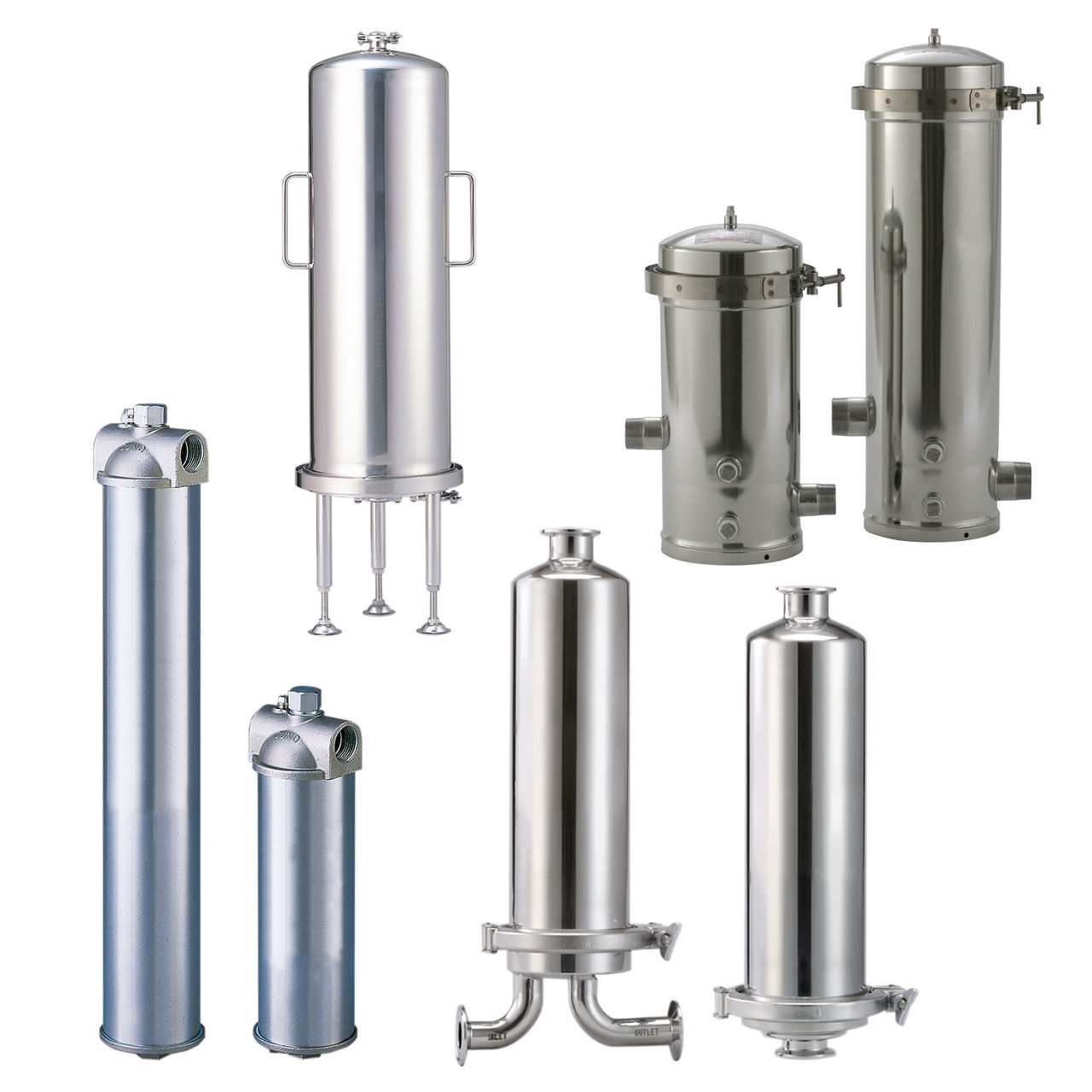

3M™ ZWB Series Filter Housing
About the product
The 3M™ ZWB Series Housing is a multi-cartridge housing designed to accommodate three, five, eight or twelve Single Open End filter cartridges up to 40 inches long. Three-high housings are the most common with other configurations available upon request. The design uses swing bolt closures to secure the housing dome to the base for operation up to 150 psi (10.3 bar) at 212o F.
Product details
The 3M™ ZWB Series Housing is multi-cartridge housings designed to accommodate three (3), five (5), eight (8) or twelve (12) sanitary style 226 Single Open End filter cartridges up to 40 inches long. Three-high housings are the most common with other configurations available upon request. The ZWB design uses swing bolt closures to secure the housing dome to the base for operation up to 150 psi (10.3 bar) at 212°F. The ZWB housing can be steam-in-place (SIP) and cleaned in place (CIP).
3M ZWB series standard housing models include 2 in. sanitary Inlet / Outlet (1-1/2 in. on 3ZWB), Silicone O-ring, a 1-1/2 in. sanitary gauge port and a 1/2 in. sanitary bleed valve connection. An optional 1/2in. sanitary barb vent/drain diaphragm valve is available.
The 3M ZWB housings are designed to meet the requirements of the pharmaceutical, bioprocessing, fine chemical, food and beverage and electronics industries.
A History of Innovation
For more than a century, 3M has applied innovation and technology to improve our customers’ lives and support their business goals. From our headquarters in St. Paul, Minnesota, we serve industrial and commercial customers and consumers in nearly 200 countries. Across thousands of products, the 3M brand represents consistency, superior quality, and value. Our success begins with a culture of creative collaboration that inspires a never ending stream of powerful technologies and product solutions that make life better. We have an ability to apply our technologies - often in combination - to an endless array of real-world customer needs. Of course, all of this is made possible by the people of 3M and our singular commitment to make life easier and better for people around the world. Toward that end, 3M is committed to providing innovative, cost-effective products that help protect people, equipment and our environment. 3M Purification Inc. provides filtration and separation solutions for residential, foodservice, science labs, industrial, marine and other applications.- Polished sanitary 316L stainless steel construction reduces bacterial/particle adhesion, eases cleaning, and increases resistance to corrosion
- User friendly vertical design with sanitary connections reduces floor space requirements and reduces disassembly time for cleaning
- Accepts 3M Purification Inc. sanitary style 226 double O-ring filters, which lock into place assuring secure installation
- Swing bolt closures offer convenient secure sealing with the housings rated to 150 psi
- Air vent allows venting before start-up and draining for safe filter operation
- Approved for food contact use
- Fully supported with a comprehensive range of readily available spares
Suggested Applications
- Suitable for most pharmaceutical (bio processing and advanced purity chemicals) and other processes where specialty grade materials and high levels of surface finish are required
Product specifications
| Industries |
Industries
Food & beverage manufacturing,Industrial water,Manufacturing |
| Category Name |
Category Name
Filter Housings |
| Product Series |
Product Series
ZWB |
